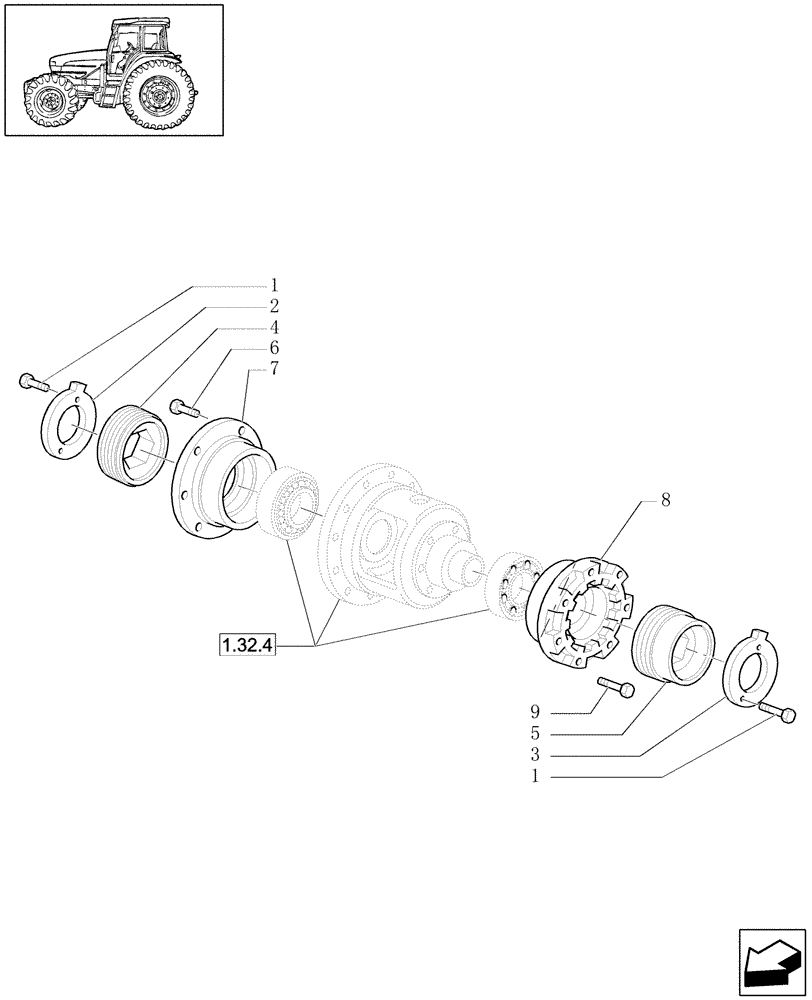

Запчасти Case IH JX1090U (1.32.0/01) - (VAR.406) FRONT AXLE,40KM/H HYDR. DIFF. LOCK - BOXES AND SUPPORT (03) - TRANSMISSION

1

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

2

5198104

BEARING LOCK NUT,Hex, M8 x 1.25, Cl 8.8

1шт.

3

5087672

LOCK WASHER,50mm ID x 93mm OD x 4mm Thk

1шт.

4

5198105

LOCK NUT

RH

1шт.

5

14238024

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

14234024

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8

6шт.

7

5181270

SUPPORT

RH

1шт.

8

5181269

SUPPORT

LH

1шт.

9

14233724

LOCK BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.
