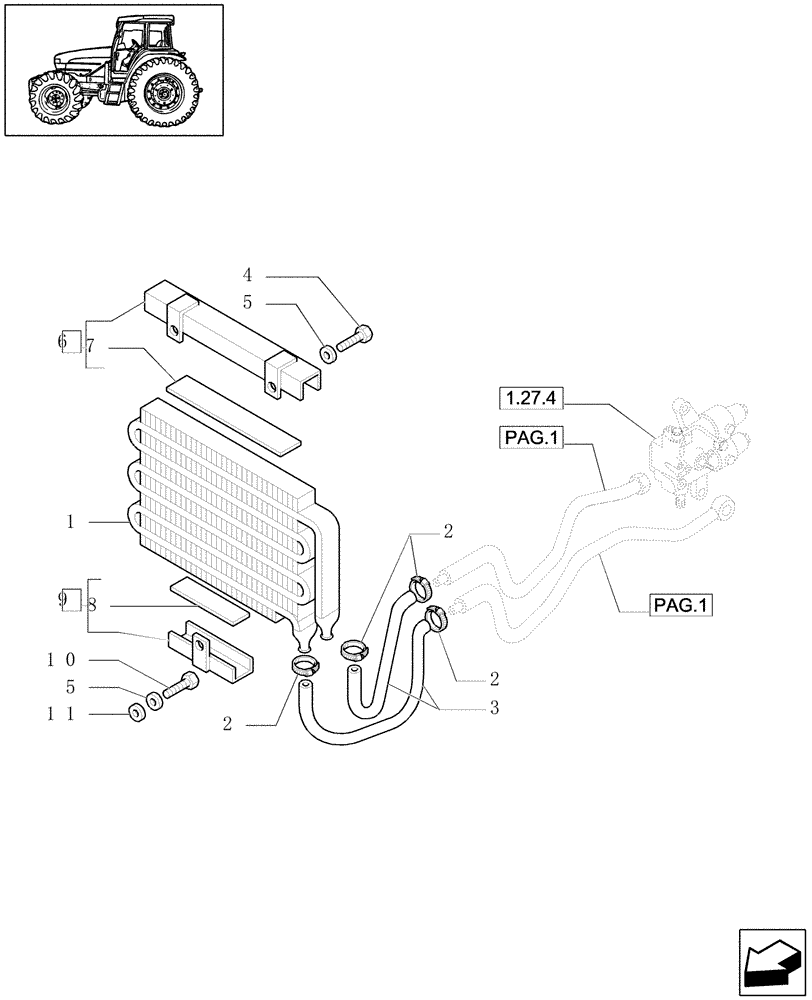

Запчасти Case IH JX1090U (1.27.7[02]) - (VAR.271-272-274-276-296) (HI-LO) AND SYNCHRONIZED REVERSING GEAR - 30-40 KM/H - HEAT EXCHANGER (03) - TRANSMISSION

1

83945933

OIL COOLER

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

M19 - 28

4шт.

3

5143837

HYDRAULIC HOSE,13.00 mm ID

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

6

5174199

BRACKET

1шт.

7

5174197

FOAM INSULATION

1шт.

8

5174196

GASKET

1шт.

9

5174209

BRACKET

1шт.

10

16172621

SCREW,Wing, M8 x 20mm, Cl 8.8, Cone Pt

M9 x 20

1шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.
