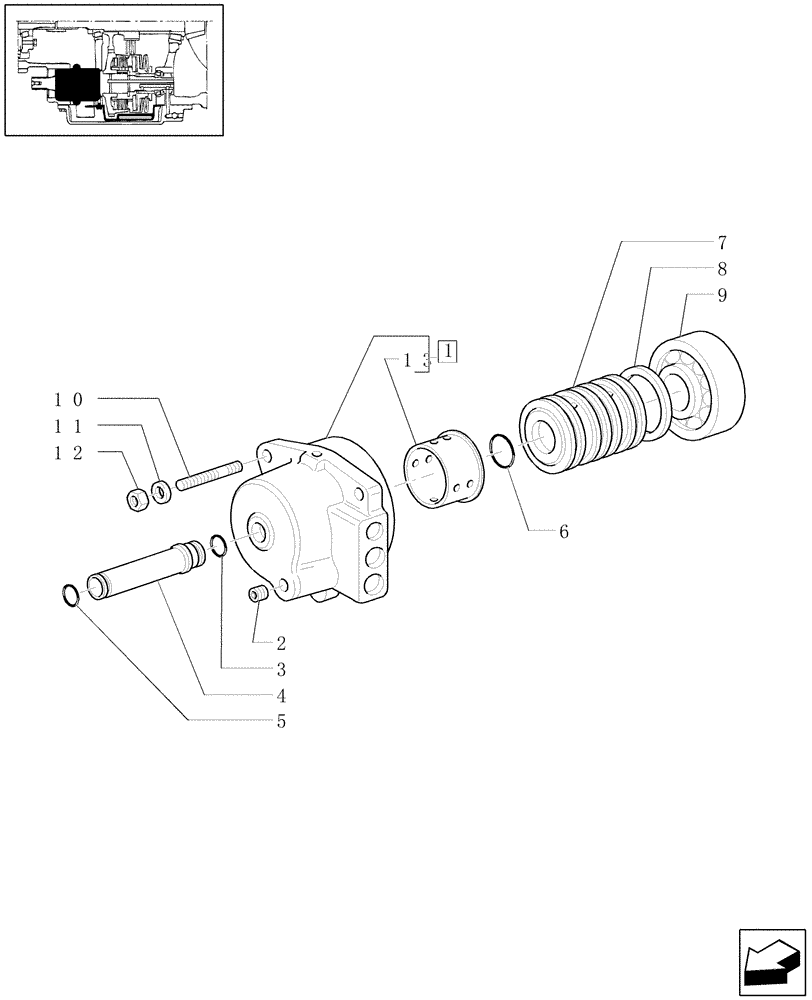

Запчасти Case IH JX1090U (1.27.3/01[02]) - (VAR.275-279) POWER SHUTTLE - HI-LO - 30-40 KMH - HYDRAULIC PTO - MANIFOLD & UNIONS (03) - TRANSMISSION

1

5194897

MANIFOLD

Incl.13

1шт.

2

99434231

PLUG

M10 x 1.25

1шт.

3

14453182

O-RING,0.07" Thk x 0.489" ID, -14, Cl 9, 70 Duro

2шт.

4

5182025

FITTING

1шт.

5

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

6

14458780

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

7

5194907

MANIFOLD

1шт.

8

5175988

SEALING RING,55.6mm ID x 60mm OD x 2.42mm Thk

SEALRING 57.58 ID x 2.42mm Thk

1шт.

9

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

10

13517124

STUD,M8 x 12mm x 28mm, Cl 8.8

3шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

12

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

13

5194900

BUSHING,59.98mm ID x 70mm OD x 48.5mm L

1шт.
