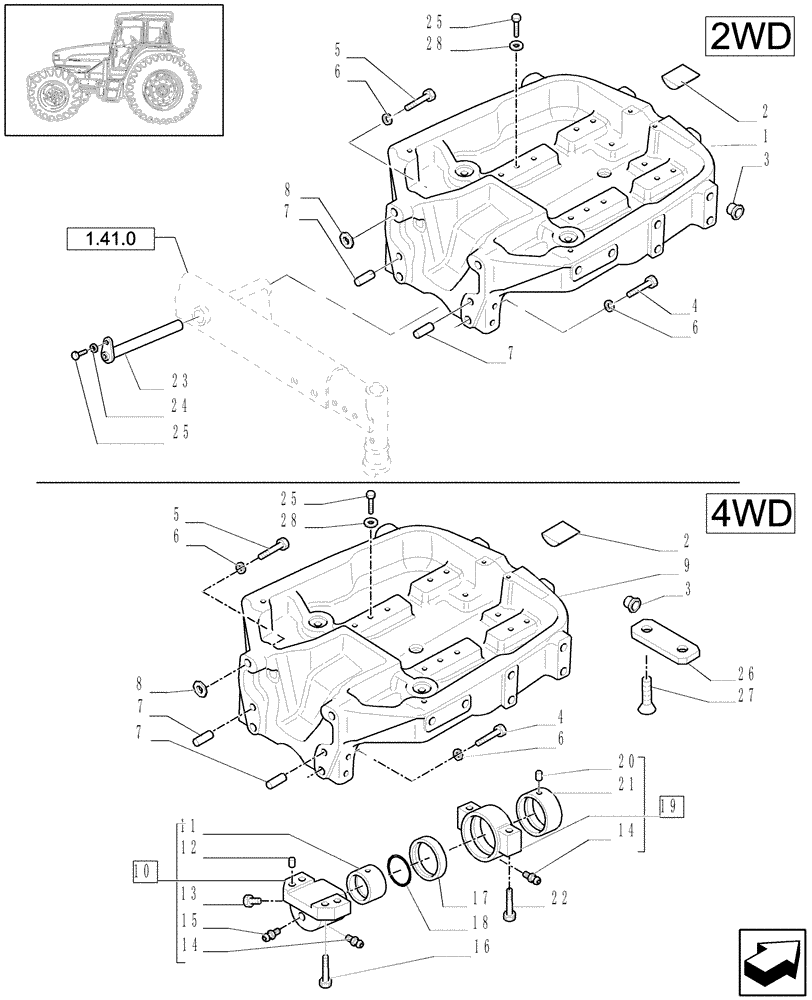

Запчасти Case IH JX1090U (1.21.1) - AXLE FASTENING FRONT SUPPORT (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
1
87339715
SUPPORT
2WD
1шт.
2
5176989
PLUG
1шт.
3
5171790
PLUG,18mm, Black
D = 18
16шт.
4
15989134
BOLT,Hex, M20 x 1.5 x 100mm, Cl 10.9
2шт.
5
15989534
SCREW,Hex, M20 x 1.5 x 120mm
2шт.
6
11191879
BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk
D = 20
4шт.
7
4668595
DOWEL,18mm OD x 22mm L
18 x 22
2шт.
8
47128135
SHIM,21mm ID x 40mm OD x 1.8mm Thk, Yellow
Yellow
2шт.
8
47128136
SHIM,21mm ID x 40mm OD x 2.0mm Thk, Red
Red
1шт.
8
47128137
SHIM,21mm ID x 40mm OD x 2.2mm Thk, Green
Green
1шт.
8
47128138
SHIM,21mm ID x 40mm OD x 2.4mm Thk, Blue
Blue
1шт.
8
47136468
SHIM,21mm ID x 40mm OD x 1.6mm Thk, Black
Black
1шт.
9
87335696
SUPPORT
4WD
1шт.
10
5146124
SUPPORT
JX1070U - JX1080U
1шт.
10
5140452
SUPPORT
JX1090U - JX1100U
1шт.
11
5101112
BUSHING,52.72mm ID x 57.16mm OD x 42mm L
52 x 57 x 42
1шт.
12
10837710
DOWEL,M10 x 25
2шт.
13
13411117
VALVE PRESSURE RELIE,M10, Black
1шт.
14
13407811
LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm
45°
1шт.
16
14272031
BOLT,Hex, M18 x 1.5 x 65mm
M18 x 1.5 x 65
2шт.
17
5188609
SEALING RING,99.04mm ID x 115mm OD x 7.5mm Thk
1шт.
18
14471380
O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro
1шт.
19
47131328
SUPPORT
1шт.
20
10837810
DOWEL,M12 x 30.00mm
M12
2шт.
21
5129385
BUSHING,99.15mm ID x 103.7mm OD x 52mm L
1шт.
22
14272934
BOLT,Hex, M18 x 1.5 x 140mm, Cl 10.9
2шт.
23
5110400
PIVOT PIN,400mm L
1шт.
24
11190574
BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk
1шт.
25
15970524
BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd
3шт.
26
87304410
SPACER,2x11mm ID x 110mm L
4WD
2шт.
With prearrangement for loader (Equip. 075-076-489)
1шт.
27
82015433
HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9
M10 x 25, 4WD
4шт.
With prearrangement for loader (Equip. 075-076-489)
1шт.
Выбрано товаров: 36
