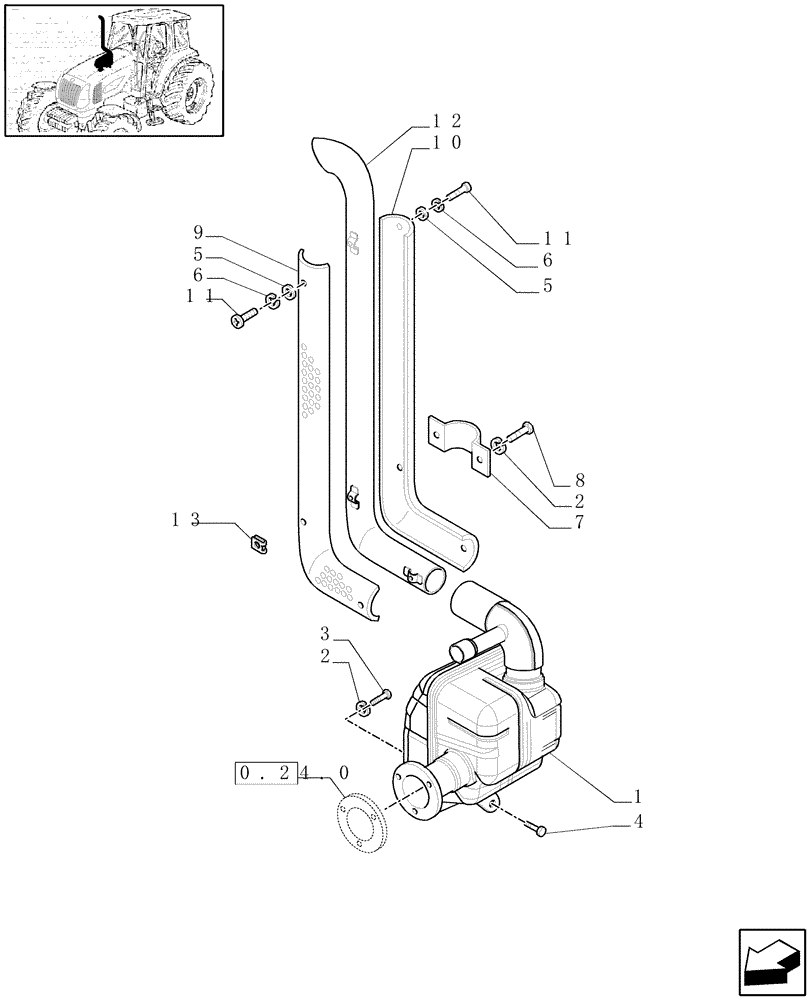

Запчасти Case IH JX1090U (1.15.1/01[03]) - (VAR. 199) MUFFLER - W/CAB - GUARDS (02) - ENGINE EQUIPMENT

1

47130396

MUFFLER

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

3

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

4

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

5

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

6

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

6шт.

7

47128424

COLLAR

1шт.

8

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

9

5182539

SHIELD

1шт.

10

5182538

SHIELD

1шт.

11

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

6шт.

12

47125733

EXHAUST SYSTEM PIPE

1шт.

13

9972225

NUT

1шт.
