(1.15.1[05]) - SILENCER (MUFFLER) - L/CAB - EXTENSION, GUARDS

Запчасти Case IH JX1090U (1.15.1[05]) - SILENCER (MUFFLER) - L/CAB - EXTENSION, GUARDS (02) - ENGINE EQUIPMENT

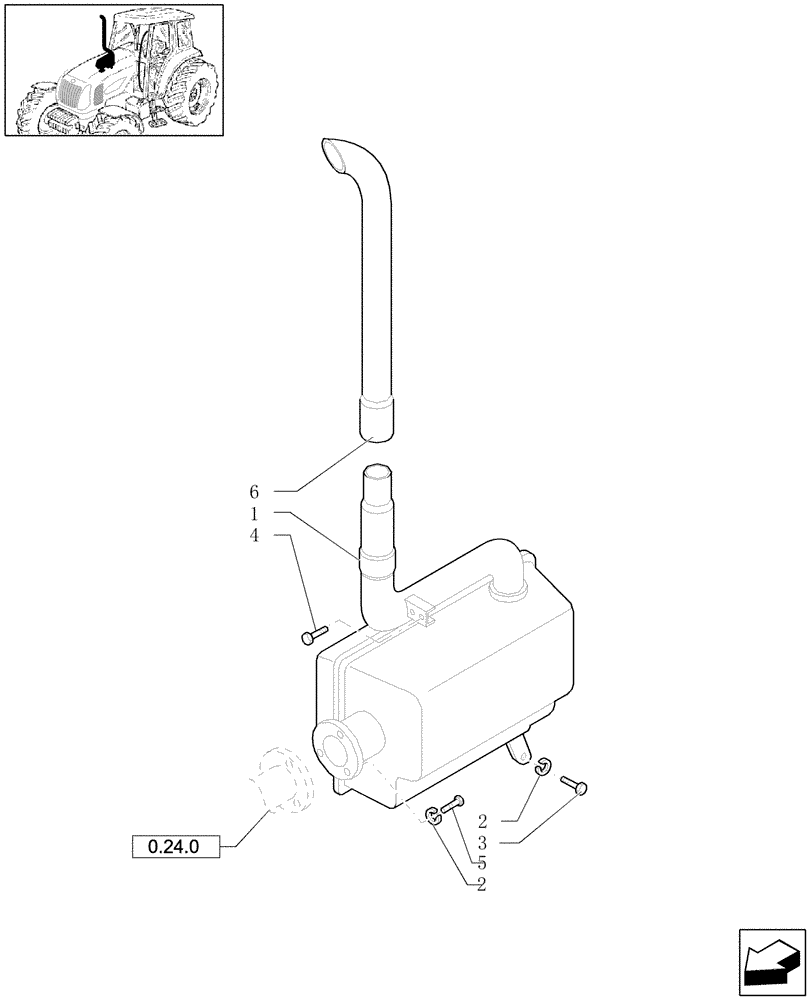

Схема запчастей Case IH JX1090U - (1.15.1[05]) - SILENCER (MUFFLER) - L/CAB - EXTENSION, GUARDS (02) - ENGINE EQUIPMENT
3
2
1
4
5
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47130388

MUFFLER

1шт.

2

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

4

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

5

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

6

5173644

EXHAUST SYSTEM PIPE

1шт.
