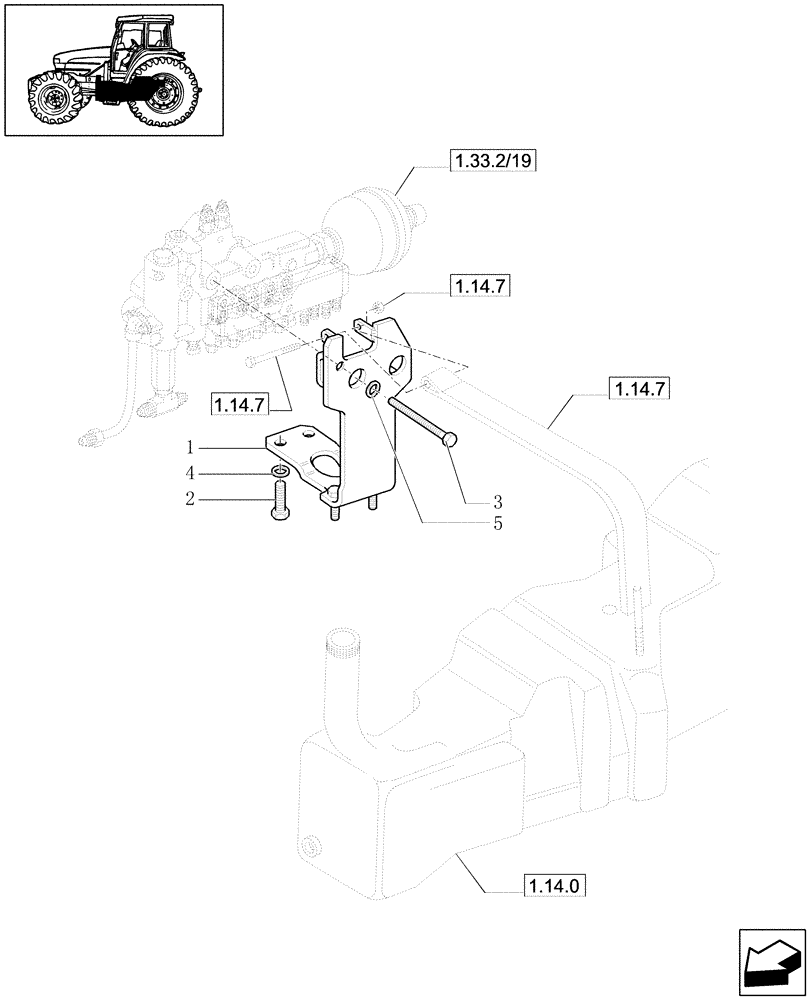

Запчасти Case IH JX1090U (1.14.7/01) - (VAR.748/1) 24+24 HI-LO POWER SHUTTLE - 40 KMH - TANK SUPPORT (02) - ENGINE EQUIPMENT

1

5186017

SUPPORT

1шт.

2

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

2шт.

3

15978234

BOLT,Hex, M14 x 1.5 x 125mm, Cl 10.9

2шт.

4

11191574

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 3.6mm Thk

2шт.

5

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.
