(1.14.0/01[01A]) - (VAR.042) FUEL TANK WITH AUXILIARY TANK - MAIN TANK AND RELATED PARTS - D5657

Запчасти Case IH JX1090U (1.14.0/01[01A]) - (VAR.042) FUEL TANK WITH AUXILIARY TANK - MAIN TANK AND RELATED PARTS - D5657 (02) - ENGINE EQUIPMENT

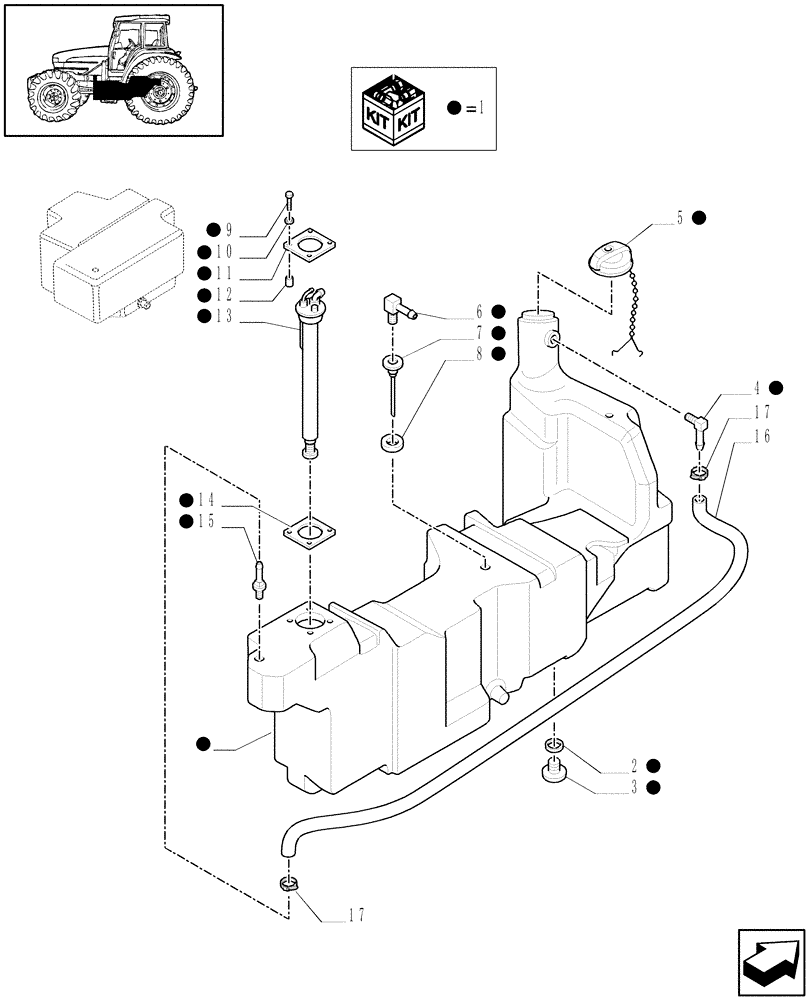

Схема запчастей Case IH JX1090U - (1.14.0/01[01A]) - (VAR.042) FUEL TANK WITH AUXILIARY TANK - MAIN TANK AND RELATED PARTS - D5657 (02) - ENGINE EQUIPMENT
11
1
1
1
6
7
9
1
14
17
1
1
17
1
4
1
10
1
1
1
1
1
12
15
1
1
8
2
1
1
3
16
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87611196

TANK

ASSY

1шт.

2

5093981

SEAL,23mm ID x 41mm OD x 3.8mm Thk

1шт.

3

5094121

PLUG,Hex socket, M24 x 1

1шт.

4

5182127

ELBOW

Feed, to Fuel Pump

1шт.

5

87610994

CAP,103mm OD x 69.7mm Thk

1шт.

6

5179322

90 ELBOW

1шт.

7

5191270

SUCTION PIPE

1шт.

8

14462889

O-RING,18.64mm ID x 3.53mm Width

1шт.

9

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

4шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

11

87341216

PLATE

1шт.

12

5118704

SPACER

4шт.

13

87585651

SENDER UNIT

1шт.

14

87341159

PLATE

1шт.

15

5179758

FITTING

1шт.

16

19053382

HOSE,10.00 mm

2060MM, Ventilation

1шт.

17

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

32x50

4шт.
