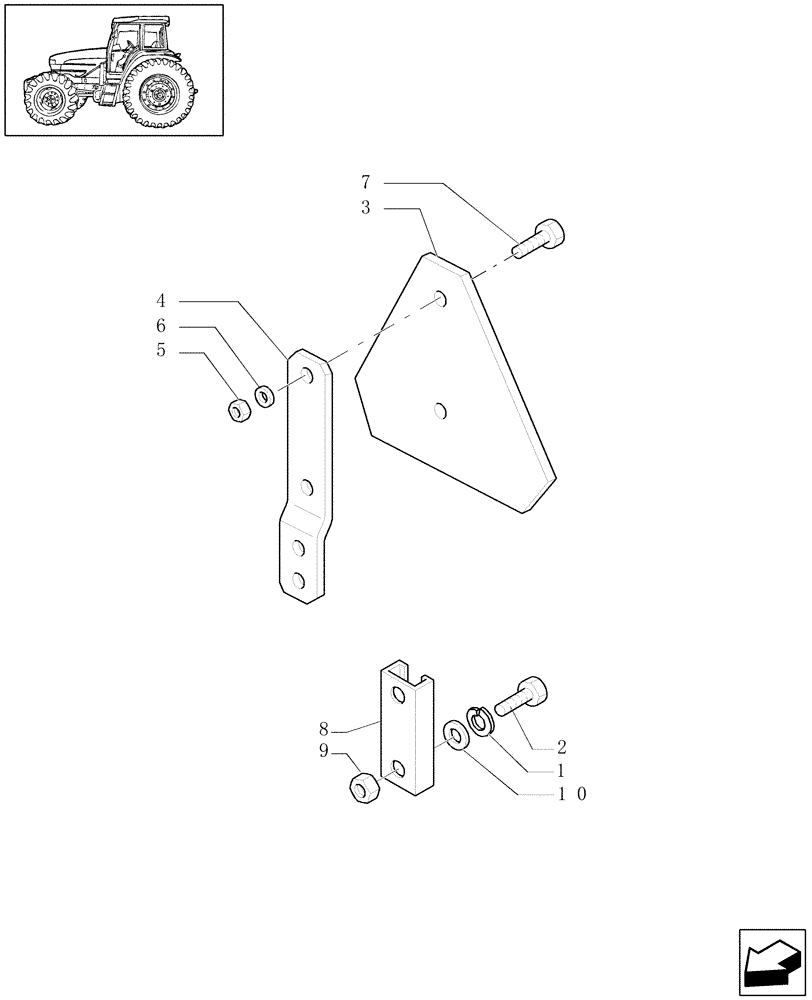

Запчасти Case IH JX1080U (1.99.3/02[01]) - (VAR.012-126-626) ESCAPE HATCH - SCANDINAVIA (W/CAB) - NUMBER PLATE SUPPORT (10) - OPERATORS PLATFORM/CAB

1

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

3

5144870

REFLECTOR

1шт.

4

5148516

BRACKET

1шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

6

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

7

10376417

SCREW

M6x10

2шт.

7

10376724

SCREW,Sl, Pan Hd, M6 x 16mm

2шт.

8

5148517

SUPPORT

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

10

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.
