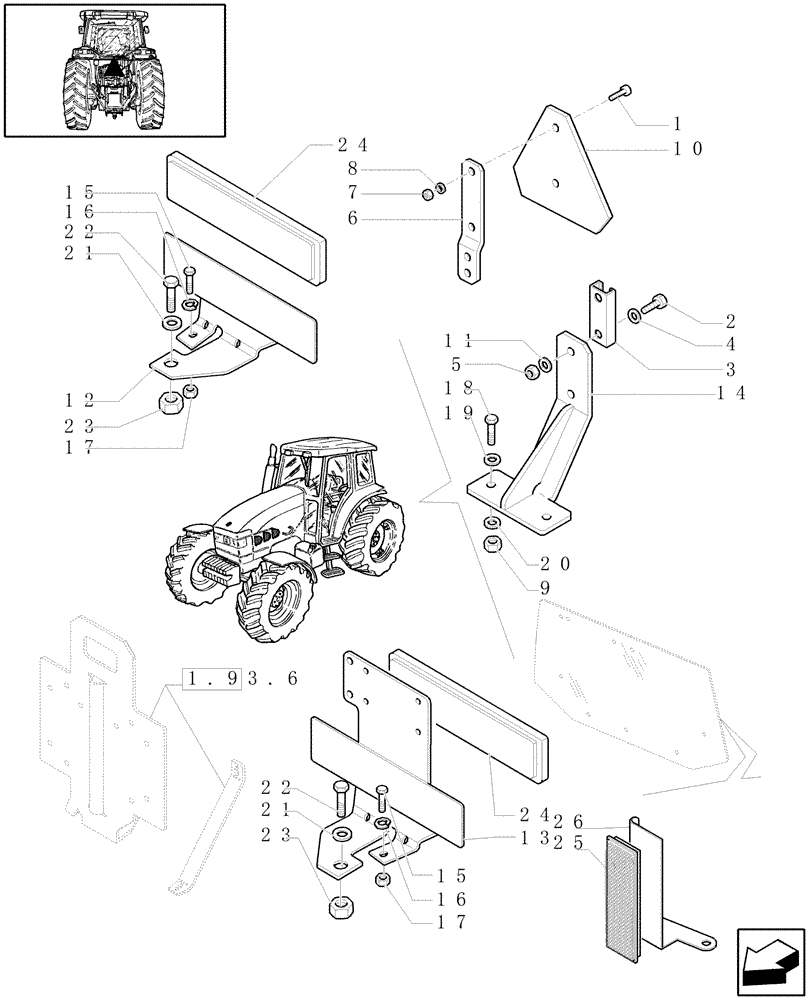

Запчасти Case IH JX1080U (1.99.3) - (VAR.007) NA ONLY - RETROREFLECTOR SUPPORT (10) - OPERATORS PLATFORM/CAB

1

10376411

SCREW

M6X10, W/Cab

2шт.

1

13276424

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 8.8, Full Thd

L/Cab

2шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

3

5148517

SUPPORT

1шт.

4

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

4

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

L/Cab

2шт.

5

16100814

NUT,M8, Cl 8, DAC

2шт.

6

5148516

BRACKET

1шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

L/Cab

1шт.

8

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

L/Cab

2шт.

9

16100814

NUT,M8, Cl 8, DAC

1шт.

10

86547710

EMBLEM

KIT SMV

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

47129828

SUPPORT

RH, W/Cab, Serial Range: -C4926

1шт.

13

47129827

SUPPORT

LH, W/Cab, Serial Range: -C4926

1шт.

14

47123030

SUPPORT

L/Cab

1шт.

15

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

, Serial Range: -C4926

2шт.

16

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

, Serial Range: -C4926

2шт.

17

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

, Serial Range: -C4926

2шт.

18

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

L/Cab

2шт.

19

10516674

LOCK WASHER,M8

(x 14)

2шт.

20

11182574

BELLEVILLE WASHER,Belleville, M8.4

2шт.

21

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

, Serial Range: -C4926

2шт.

22

11112424

SCREW,Hex, M12 x 30mm, Cl 8.8, Full Thd

, Serial Range: -C4926

2шт.

23

11702914

NUT,M12, Cl 8

, Serial Range: -C4926

2шт.

24

5198373

REFLECTOR

, Serial Range: -C4926

2шт.

25

82034755

REFLECTOR,RED

, Start Serial: D4926

2шт.

26

87531430

SUPPORT

LH, Start Serial: D5410

1шт.

26

87531431

SUPPORT

RH, Start Serial: D5410

1шт.
