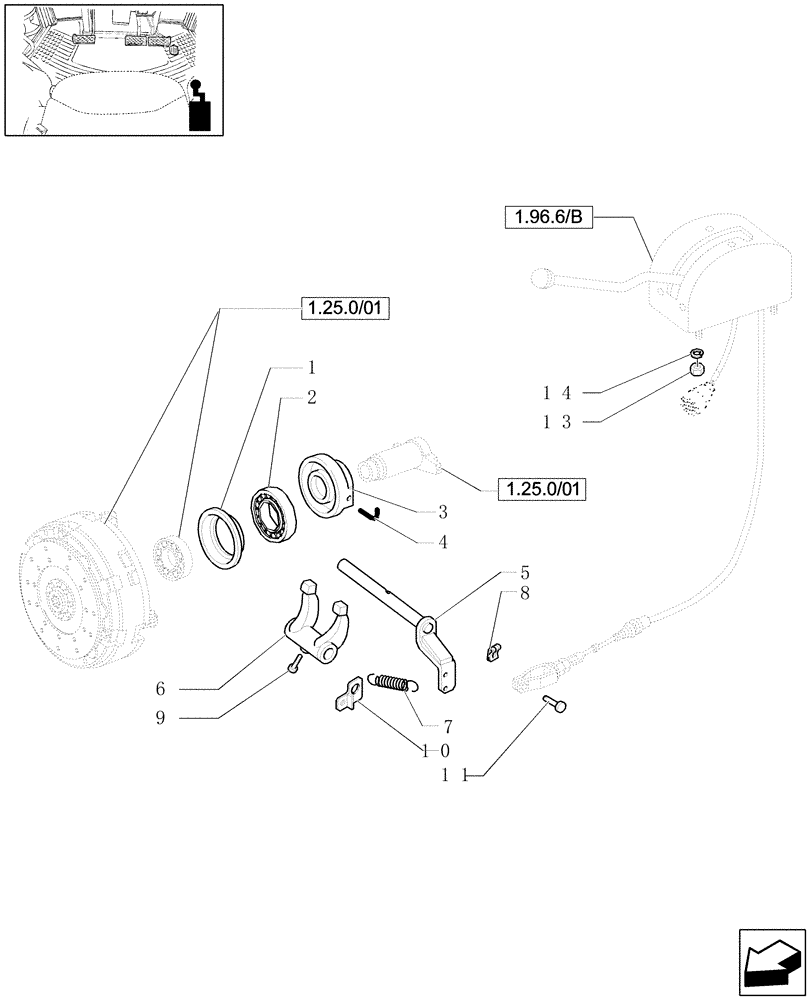

Запчасти Case IH JX1080U (1.96.6) - POWER TAKEOFF CONTROL - FRICTION CLUTCH (10) - OPERATORS PLATFORM/CAB

1

5167182

SLEEVE,95mm ID x 128mm OD x 33mm L

1шт.

2

47127081

BALL BEARING,75mm ID x 115mm OD x 20mm W

75x115x20

1шт.

3

5167173

BEARING CARRIER,Clutch

1шт.

4

44011615

SPRING,15mm, Free Length

2шт.

5

87310439

LEVER

1шт.

6

5168938

FORK

1шт.

7

5168947

SPRING

1шт.

8

11063976

CLIP

1шт.

9

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16 x 32

1шт.

10

5170896

BRACKET

1шт.

11

4998010

PIN,10mm OD x 18.5mm L

1шт.

12

47131844

FLEXIBLE CONTROL

1шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.
