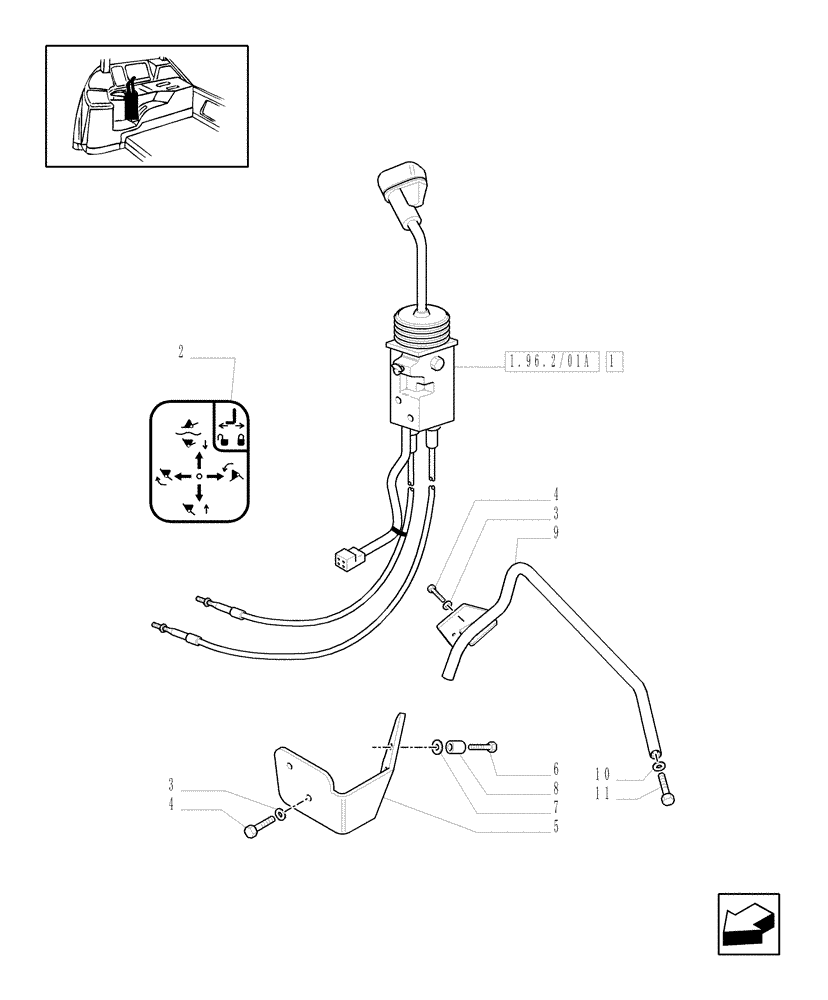

Запчасти Case IH JX1080U (1.96.2/01) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - JOYSTICK - D4936 (10) - OPERATORS PLATFORM/CAB

1

87305800

JOYSTICK

1шт.

2

87394117

DECAL

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

16044831

SCREW,Hex, M8 x 80mm, Cl 10.9

2шт.

5

87311156

BRACKET

W/Cab

1шт.

6

86508619

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

7

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

2шт.

8

82003698

SPACER,11mm ID x 20mm OD x 30mm L

2шт.

9

87306007

HANDLE

RH, L/Cab

1шт.

10

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

11

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.
