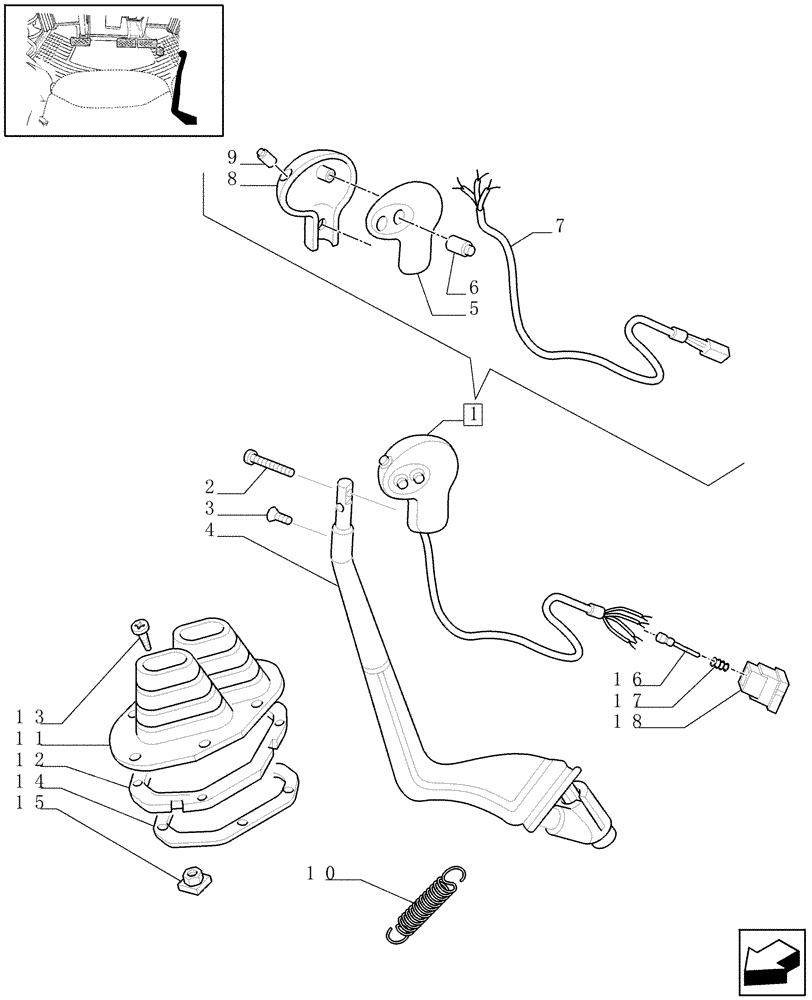

Запчасти Case IH JX1080U (1.96.0/07) - (VAR.095) HYDRAULIC POWER CLUTCH - EXTERNAL CONTROL (10) - OPERATORS PLATFORM/CAB

1

87356063

KNOB

ASSY

1шт.

2

13274877

SCREW,Phil Pan Hd, M5 x 30mm, SST

1шт.

3

13310777

SCREW,Pozidriv Oval Hd, Csk, M5 x 10mm, Full Thd, SST

1шт.

4

47134078

LEVER

1шт.

5

82006429

KNOB

LH

1шт.

6

87398154

SWITCH

Hi-Lo Switch

2шт.

7

87520251

WIRE HARNESS

1шт.

8

87358400

KNOB

RH

1шт.

9

82007691

SWITCH

Dump Switch

1шт.

10

5119832

SPRING,Cylindrical, 32mm OD x 88mm L

W/Cab

1шт.

11

5167165

BOOT

L/Cab

1шт.

12

5176072

RING

L/Cab

1шт.

13

15688507

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 22mm

6шт.

14

47124217

SHIM,177.5mm OD x 3mm Thk

L/Cab

1шт.

15

14115980

NUT

L/Cab

6шт.

16

12451844

TERMINAL CONNECTOR,Male, 0.3 - 0.6 mm2

4шт.

17

12452283

GASKET

4шт.

18

12453387

MULTIPOLE CONNECTOR

1шт.
