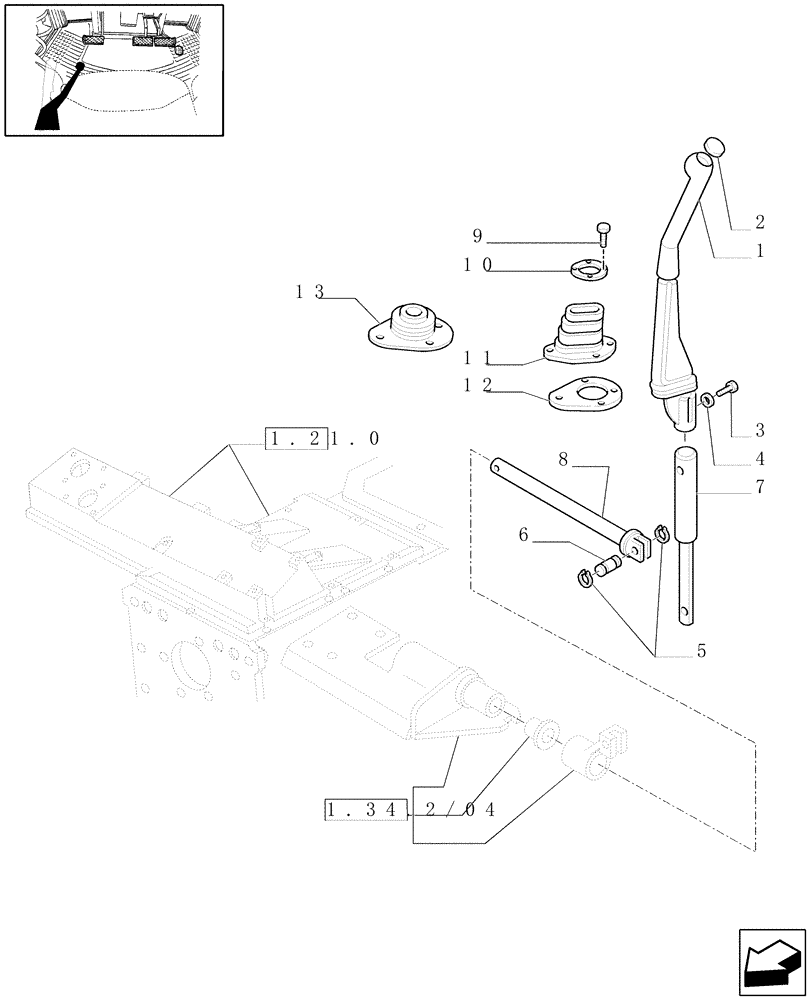

Запчасти Case IH JX1080U (1.96.0/06[01]) - (VAR.748) 24+12 40KM/H, HI-LO SYNCHRONIZED REVERSER, HYDRAULIC P.T.O., CONTROL LEVER (10) - OPERATORS PLATFORM/CAB

1

5129984

LEVER

JX1070U, JX1080U

1шт.

2

5173907

INSERT

JX1070U, JX1080U

1шт.

3

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

JX1070U, JX1080U

1шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

JX1070U, JX1080U

1шт.

5

11065676

SNAP RING,M8, Ext

4шт.

6

5171255

PIN,8mm OD x 34mm L

2шт.

7

5173725

LEVER

1шт.

8

5173727

SHAFT

1шт.

9

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

JX1070U, JX1080U

4шт.

10

5176214

RING

JX1070U, JX1080U

1шт.

11

5167408

BOOT

JX1070U, JX1080U

1шт.

12

5153389

SHIM,80mm ID x 120mm OD x 3.5mm Thk

JX1070U, JX1080U

1шт.

13

5130289

BOOT

JX1070U, JX1080U, W/Cab

1шт.
