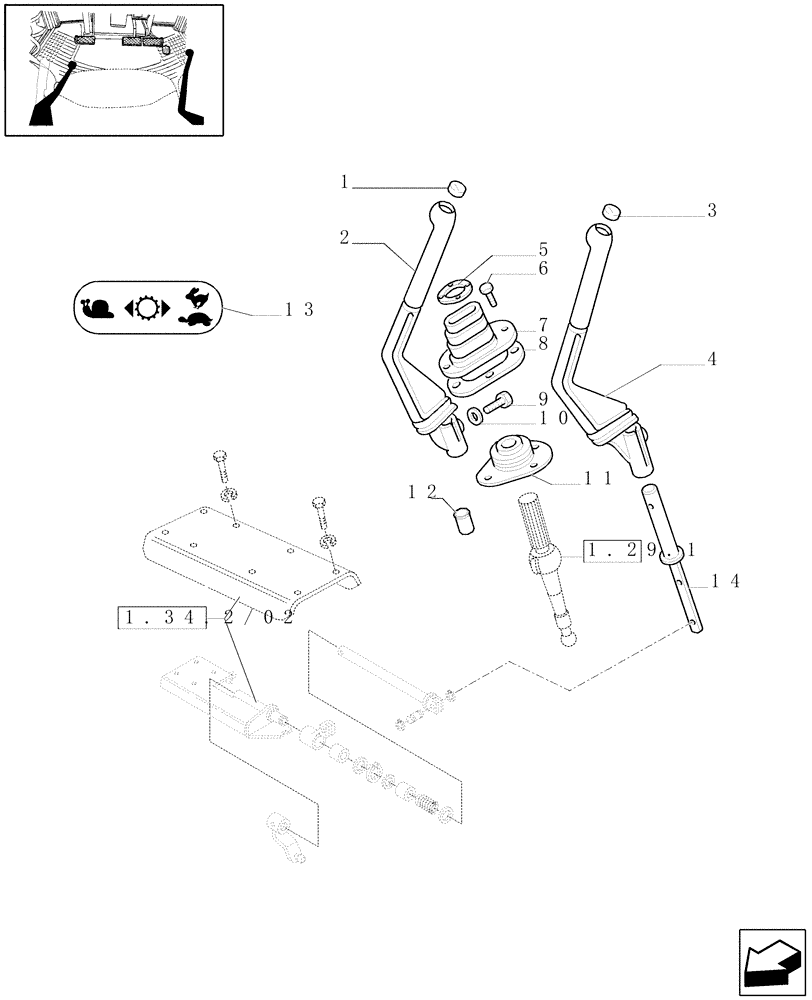

Запчасти Case IH JX1080U (1.96.0/02) - (VAR.113-119-119/1) SYNCHRONIZED CREEPER AND REVERSER UNIT - CONTROL LEVERS (10) - OPERATORS PLATFORM/CAB

1

5132272

INSERT

1шт.

2

5167008

LEVER

1шт.

3

5173907

INSERT

1шт.

4

5129984

LEVER

1шт.

5

5176214

RING

1шт.

6

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

7

5167408

BOOT

Upper

1шт.

8

5153389

SHIM,80mm ID x 120mm OD x 3.5mm Thk

1шт.

9

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

5130289

BOOT

W/Cab

1шт.

12

13604211

SPACER,6.5mm ID x 15mm OD x 15mm L

6.5 x 15 x 15

1шт.

13

82004933

DECAL

Transmission

1шт.

14

5173725

LEVER

1шт.
