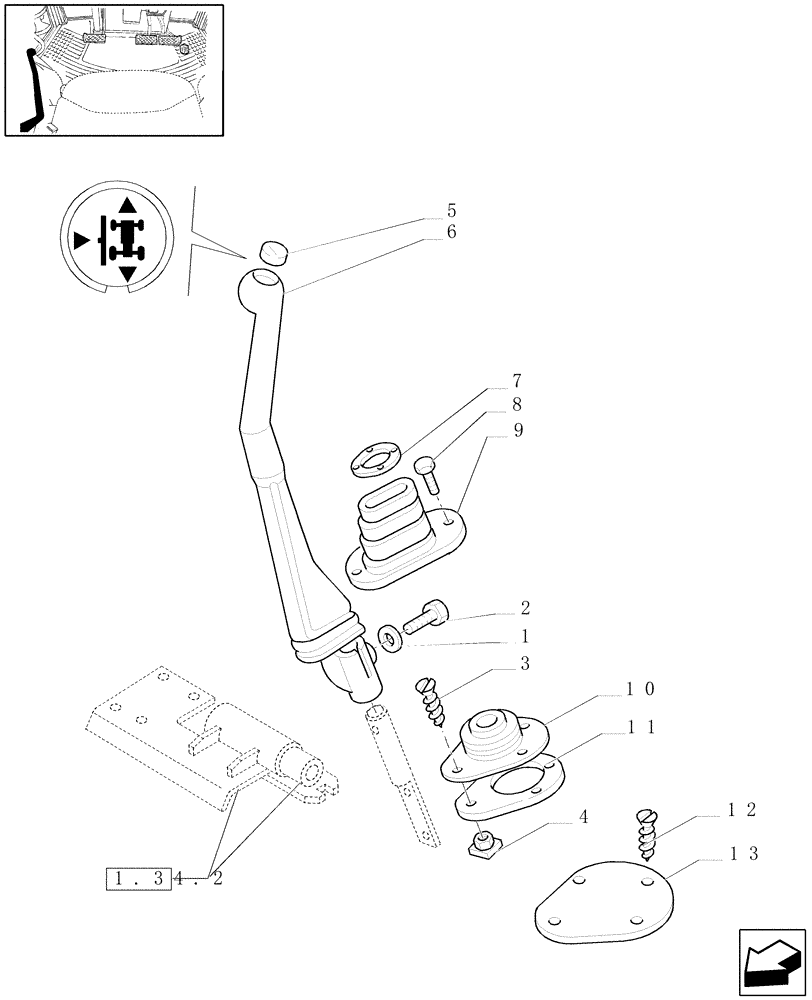

Запчасти Case IH JX1080U (1.96.0[02]) - EXTERNAL CONTROL (10) - OPERATORS PLATFORM/CAB

1

10569370

LOCK WASHER,8.1mm ID x 12.7mm OD x 2mm Thk

D=8, JX1090U, JX1100U

1шт.

2

16044124

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

3

15688507

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 22mm

4шт.

4

14115780

BLOCK

4шт.

5

5173907

INSERT

1шт.

6

5129984

LEVER

1шт.

7

5176214

RING

1шт.

8

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

4шт.

9

5167408

BOOT

1шт.

10

5130289

BOOT

W/Cab

1шт.

11

5153389

SHIM,80mm ID x 120mm OD x 3.5mm Thk

L/Cab

1шт.

12

15905501

SELF-TAP SCREW,Pan Hd, M6.3 x 22

W/Cab

4шт.

13

5176213

COVER

W/Cab

1шт.
