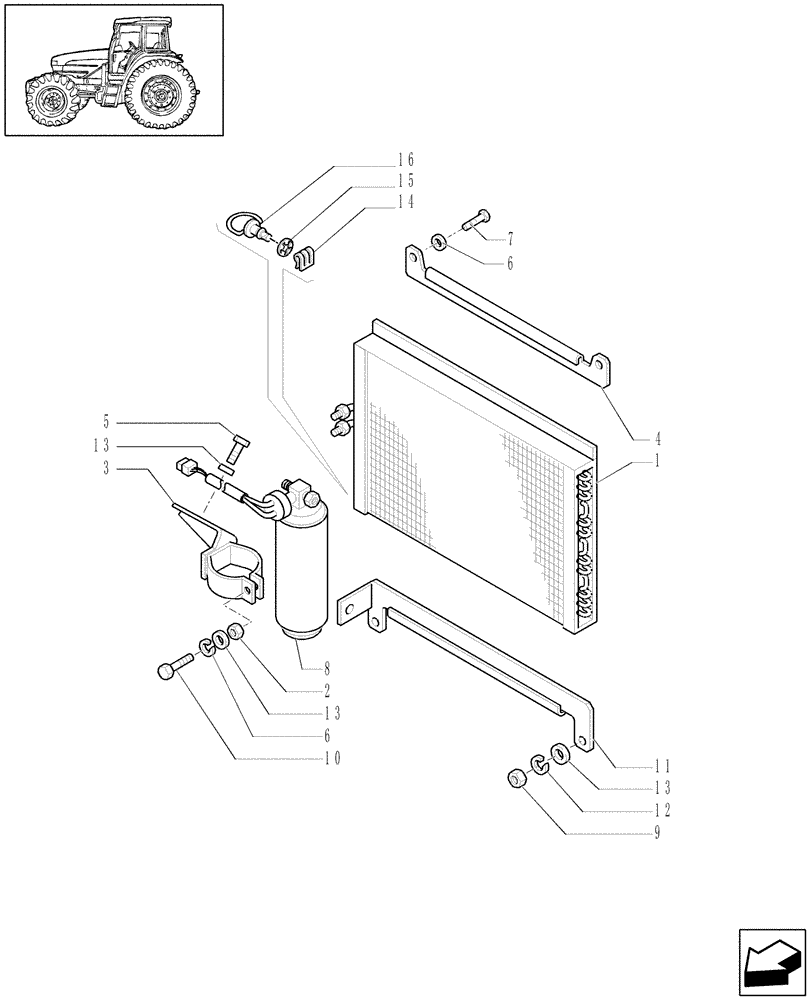

Запчасти Case IH JX1080U (1.94.2/01[01]) - (VAR.641-641/1) AIR CONDITIONING - RADIATOR & FILTER (10) - OPERATORS PLATFORM/CAB

1

47132050

CONDENSER

1шт.

2

15896214

NUT,M6, Cl 8

Upper

1шт.

3

47125999

BRACKET

1шт.

4

47132051

GUIDE

Upper

1шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

6

10516474

LOCK WASHER

3шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

8

5165615

RECEIVER-DRYER

M8X1.25

1шт.

9

16100814

NUT,M8, Cl 8, DAC

2шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

Lower

1шт.

11

47132052

GUIDE

Lower

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

13

13550314

WASHER

M8

4шт.

14

82004582

CLIP,Square, 25mm

1шт.

15

82004583

RETAINER,6.3mm ID x 12.5mm OD x 0.5mm Thk

1шт.

16

82005454

FASTENER,12mm OD x 16mm L

1шт.
