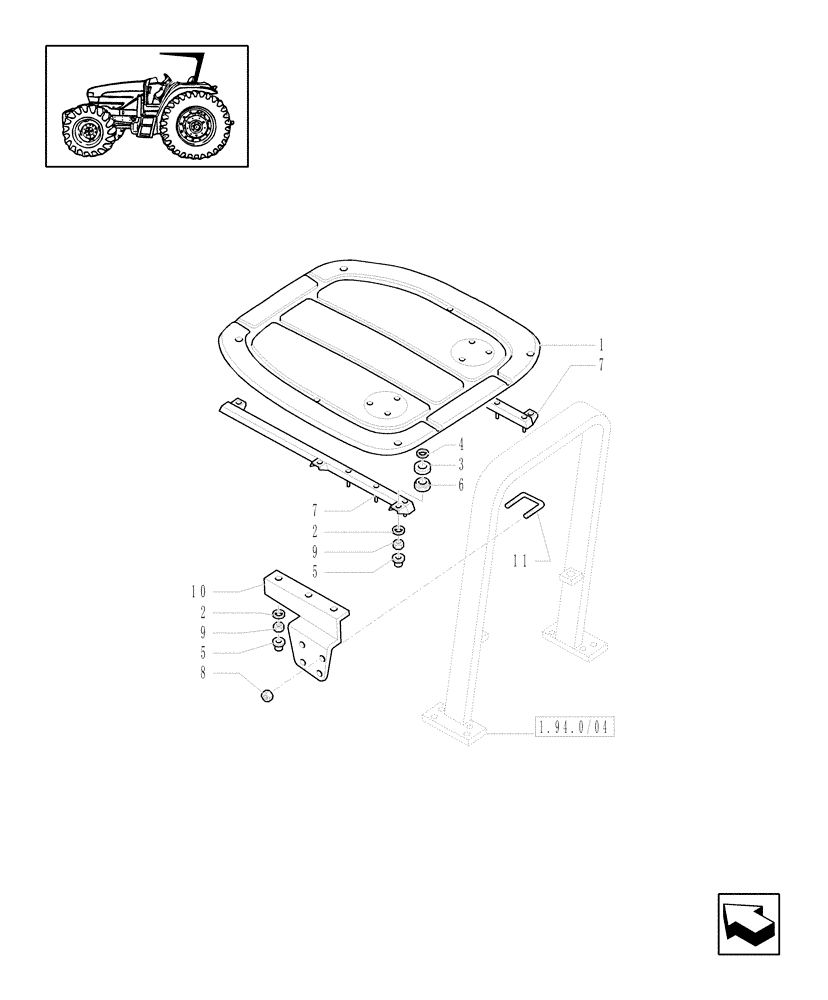

Запчасти Case IH JX1080U (1.94.0/03[01]) - (VAR.857) HARD TOP - PLATES & SUPPORTS - C5381 (10) - OPERATORS PLATFORM/CAB

1

47123234

ROOF

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

3

5181750

PAD

6шт.

4

12646205

WASHER,M8 x 35 x 3

6шт.

5

5132136

CAP COVER,M8

6шт.

6

5137570

PAD

10X16X23

6шт.

7

5181637

SUPPORT

RH

1шт.

7

5181757

SUPPORT

LH

1шт.

8

12577511

NUT,M12 x 1.75, Cl 8

8шт.

9

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

12шт.

10

5185440

PLATE

LH

1шт.

10

5185441

PLATE

RH

1шт.

11

82016733

U-BOLT,M12 x 84 x 144, Cl 8.8

4шт.
