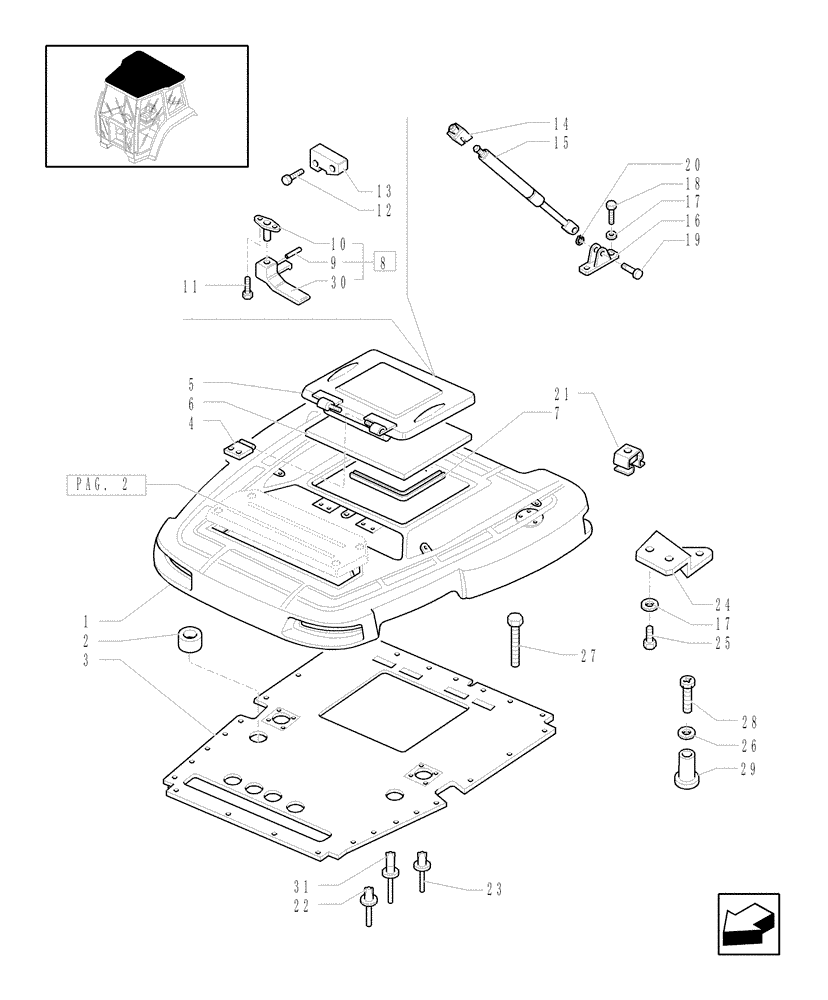

Запчасти Case IH JX1080U (1.94.0[01]) - CAB WITH ESCAPE HATCH - CAB, ROOF, OPENING AND INTERNAL TRIMMING - C4934 (10) - OPERATORS PLATFORM/CAB

1

47131396

ROOF

1шт.

2

47131771

INSULATOR

2шт.

3

47131392

SOFT TRIM

1шт.

4

47124976

HINGE

2шт.

5

47131651

HATCH

1шт.

6

47131598

SOFT TRIM

1шт.

7

47131614

RUBBER STRIP

1шт.

8

5178614

HANDLE

1шт.

9

14159970

LOCK PIN,M2.5 x 20, Slotted

1шт.

10

5178206

PIN,10mm OD x 51mm L

1шт.

11

13299414

SCREW,Pozidriv Flat Hd, Csk, M5 x 16mm, Cl 5.8

2шт.

12

13301917

SCREW,Pozidriv Flat Hd, M6 x 30mm, Cl 5.8

2шт.

13

5108537

STRIKER PLATE

1шт.

13

47123966

LOCKING TAB

1шт.

14

5108539

BLOCK

2шт.

15

82002925

GAS STRUT

2шт.

16

82003514

BRACKET

2шт.

17

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

8шт.

18

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

4шт.

19

5108541

LOCK PIN

2шт.

20

11087776

CIRCLIP,Ext., M6, BLO

2шт.

21

5116031

SPRING NUT

M8

2шт.

21

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

8шт.

22

5162852

RIVET,7.3mm OD x 12mm L

35шт.

23

47132418

FASTENER

6шт.

24

47123948

BRACKET

2шт.

25

13276117

SCREW,Pozidriv Pan Hd, M6 x 14mm, Cl 5.8, Full Thd

4шт.

26

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

10шт.

27

16045421

BOLT,Hex, M8 x 110mm, Cl 8.8

2шт.

27

16046031

SCREW,Hex, M8 x 1.25 x 140mm, Cl 10.9

1шт.

28

13276811

SCREW,Pozidriv Pan Hd, M6 x 30mm, Cl 5.8

6шт.

28

13277317

SCREW,Pozidriv Pan Hd, M6 x 55mm, Cl 5.8

4шт.

29

47131686

BUSHING,6.5mm ID x 18mm OD x 11.5mm L

10шт.

30

5178432

HANDLE

1шт.

31

5162851

RIVET,7.3mm OD x 19mm L

2шт.
