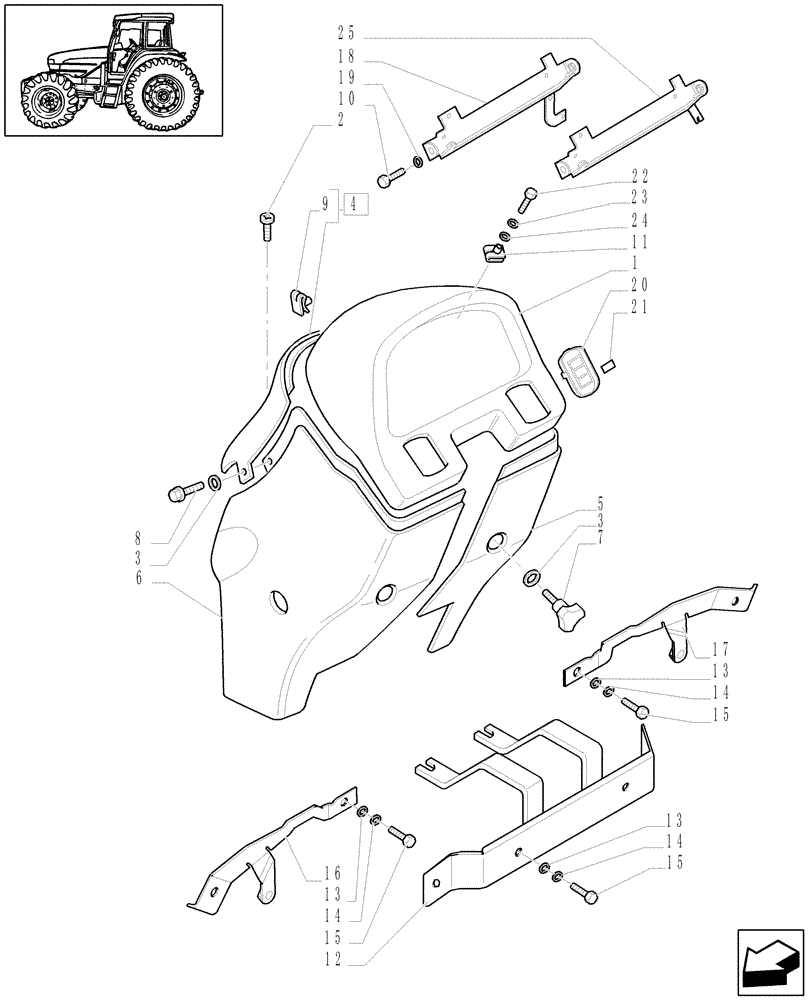

Запчасти Case IH JX1080U (1.93.5) - INSTRUMENT PANEL (10) - OPERATORS PLATFORM/CAB

1

47126917

INSTRUMENT PANEL

1шт.

2

14778914

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

3шт.

3

12647604

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6шт.

4

5199562

PANEL

Upper, W/Cab

1шт.

4

5199561

PANEL

L/Cab

1шт.

5

47132351

PANEL

RH, Serial Range: D5299-C4980

1шт.

5

47126763

PANEL

RH, Serial Range: D4980-C5299

1шт.

6

5199556

PANEL

LH

1шт.

7

5178910

KNOB

4шт.

8

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

2шт.

9

82006114

SPRING NUT

M6 x 1, W/Cab

3шт.

10

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

8шт.

11

14188971

CLIP

Speed, M6 x 1

2шт.

12

47126307

BRACKET

1шт.

13

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

6шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

6шт.

15

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

6шт.

16

47126336

BRACKET

1шт.

17

47126339

BRACKET

1шт.

18

47126397

SUPPORT

, Serial Range: -C5203

1шт.

19

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

8шт.

20

47126918

PADDING

1шт.

21

5166218

PLUG,Switch

3шт.

22

13272477

SCREW,Pozidriv Pan Hd, M4 x 20mm, Full Thd, SST

2шт.

22

47130843

SCREW,Phillips Drive, Pan HD, M4 x 75mm

M4 x 75

2шт.

23

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

4шт.

24

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

D=4

4шт.

25

87362669

SUPPORT

, Start Serial: D5203

1шт.
