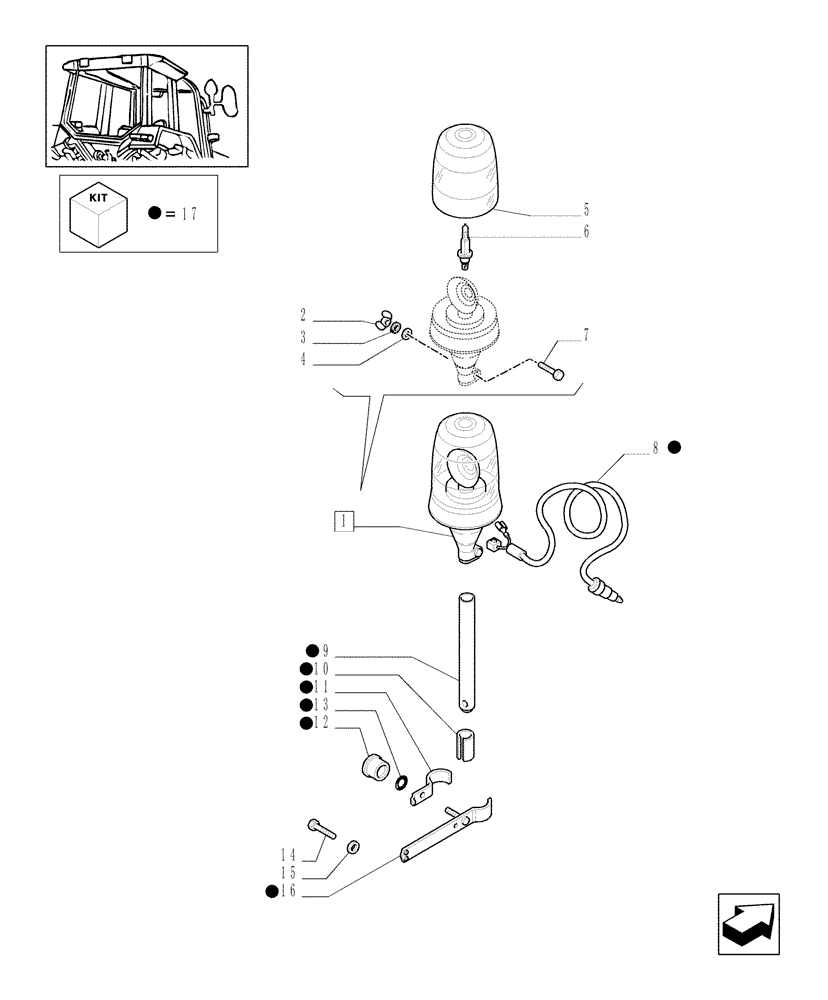

Запчасти Case IH JX1080U (1.92.762) - (VAR.762) ROTARY BEACON (10) - OPERATORS PLATFORM/CAB

1

82018390

BEACON,12V, 55W

Assy, Incl. 2-7

1шт.

2

10101901

WING NUT

M10

1шт.

3

12605671

LOCK WASHER,Int Tooth, M10

1шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

5

82020775

LENS

1шт.

6

86616248

BULB,H1, 12V, 55W

12V, 55W

1шт.

7

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

1шт.

8

82027731

WIRE HARNESS

BEACON

1шт.

9

82027653

SUPPORT

1шт.

10

82028965

SLEEVE,24mm ID x 28mm OD x 41.0mm L

1шт.

11

82028975

BRACKET

1шт.

12

82016257

KNOB

1шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

14

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

M6x1x16

2шт.

15

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

16

82028964

BRACKET

1шт.

17

87325269

SERVICE KIT

Assy

1шт.
