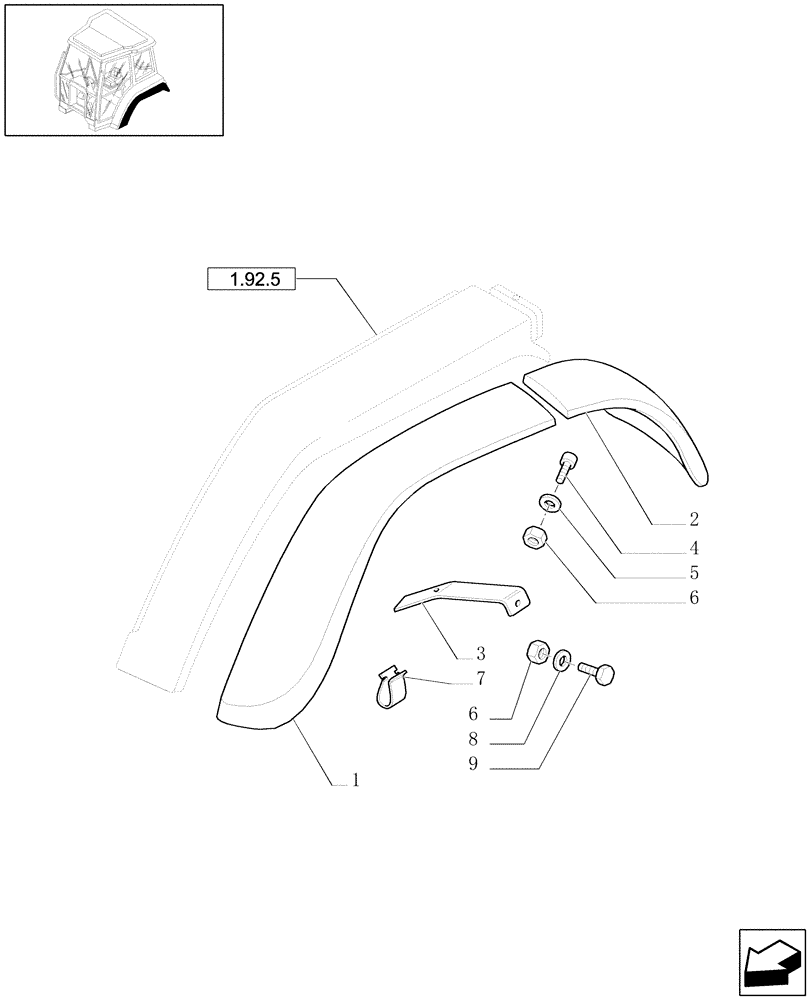

Запчасти Case IH JX1080U (1.92.5/01) - (VAR.869) MUDGUARD SIDE SHIELDS (W/CAB) (10) - OPERATORS PLATFORM/CAB

1

82024492

FENDER EXTENSION

RH

1шт.

1

82024493

FENDER EXTENSION

LH

1шт.

2

82024498

FENDER EXTENSION

RH

1шт.

2

82024499

FENDER EXTENSION

LH

1шт.

3

82008692

BRACKET

RH

1шт.

3

82008693

BRACKET

LH

1шт.

4

13276417

SCREW,Posidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

2шт.

5

12647601

WASHER,6.15mm ID x 16mm OD x 2mm Thk

4шт.

6

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

7

82010838

SPRING CLIP,0.5mm Thk

M6x20

38шт.

8

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

9

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

2шт.
