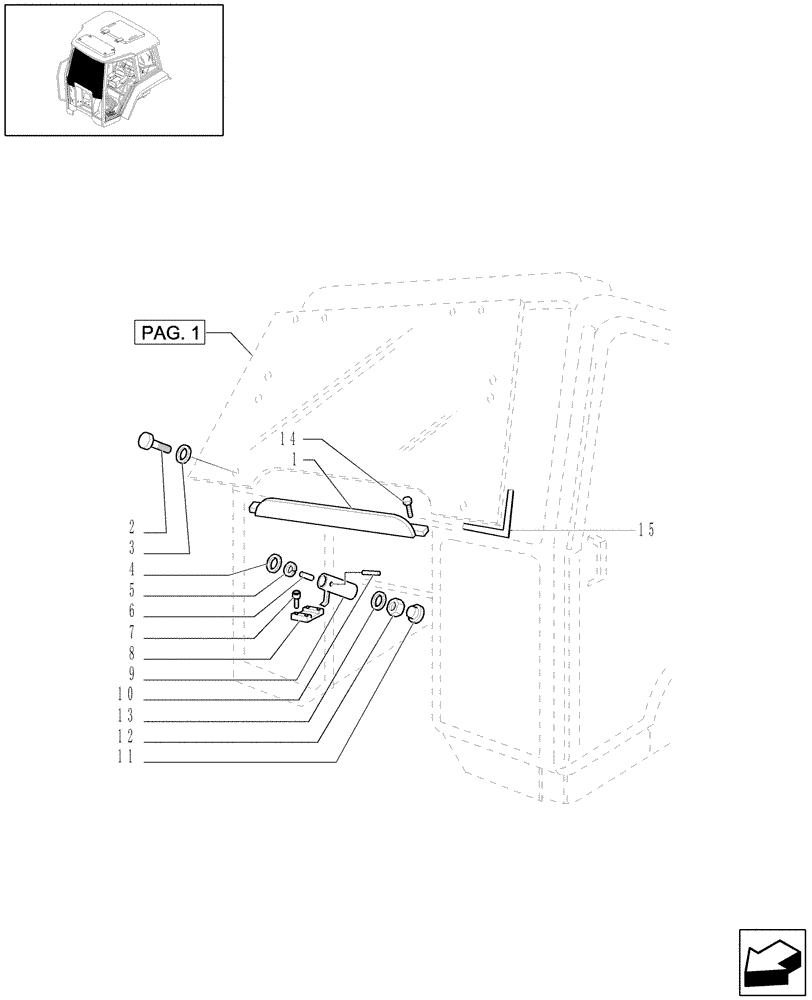

Запчасти Case IH JX1080U (1.92.3/01[02]) - (VAR.640) HINGED WINDSHIELD - FASTENERS (10) - OPERATORS PLATFORM/CAB

1

47125119

RETAINING PLATE

1шт.

2

83995345

PIN

2шт.

3

81865223

SEALING WASHER,12.8mm ID x 36mm OD x 6.5mm Thk

6шт.

4

83995356

RUBBER SEAL,13mm ID x 35mm OD x 3mm L

2шт.

5

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

2шт.

6

83995351

SPACER,12mm ID x 16mm OD x 24.1mm L

2шт.

7

15688601

SELF-TAP SCREW,Pan Hd, M4.8 x 25mm

4шт.

8

82000919

BLOCK

2шт.

9

81868309

HANDLE

2шт.

10

81865250

PIN,4.3mm OD x 31.45mm L

2шт.

11

83961986

PLUG,30mm

2шт.

12

11702914

NUT,M12, Cl 8

2шт.

13

14499604

WASHER,13mm ID x 20mm OD x 2.5mm Thk

2шт.

14

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

3шт.

15

82008628

SEAL,3770mm L

1шт.
