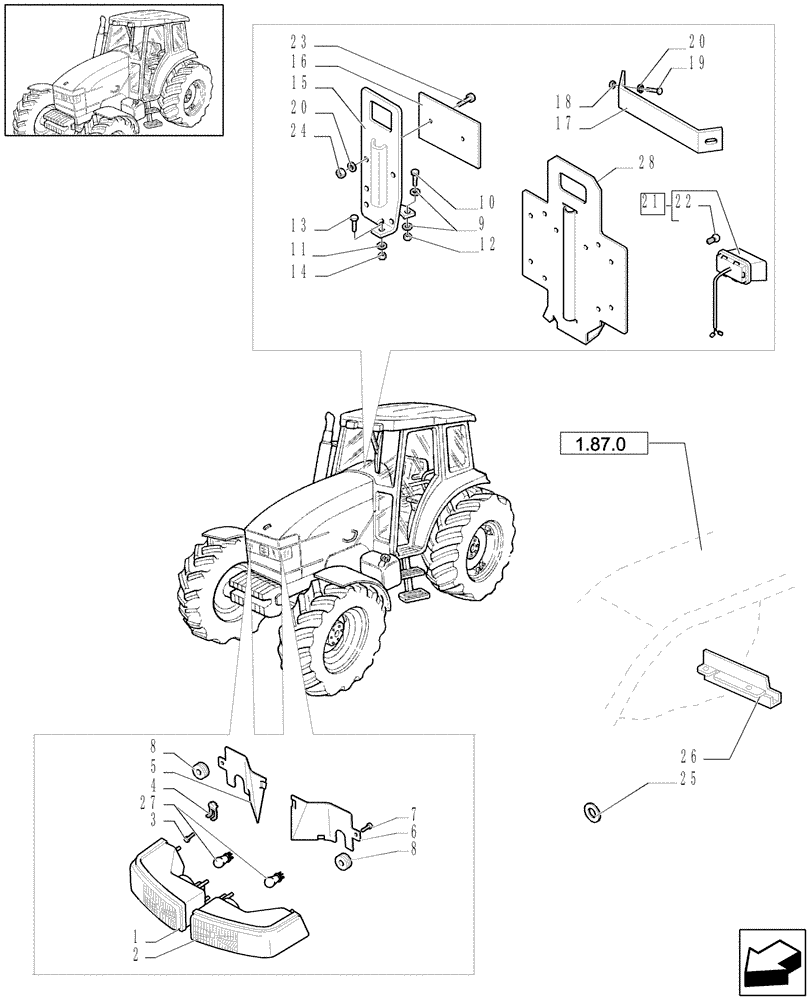

Запчасти Case IH JX1080U (1.91.7/03) - (VAR.760) FRONT SPOT LAMP LEFT FLOW - FRONT SPOT LAMP - LICENSE PLATE SUPPORT (10) - OPERATORS PLATFORM/CAB

1

232450A2

HEADLIGHT,12V

RH, LH Dip, Includes 27

1шт.

2

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

LH, LH Dip, Includes 27

1шт.

3

10559907

SELF-TAP SCREW,Hex Flg, M6.3 x 19mm

6шт.

4

44995046

CLIP

6шт.

5

47127434

PLATE

1шт.

6

47127433

BRACKET

1шт.

7

10559807

SELF-TAP SCREW,Hex Flg, M6.3 x 16mm

2шт.

8

47127368

GROMMET

2шт.

9

10520004

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

10

11112424

SCREW,Hex, M12 x 30mm, Cl 8.8, Full Thd

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

12

11702914

NUT,M12, Cl 8

1шт.

13

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

14

16100814

NUT,M8, Cl 8, DAC

1шт.

15

47127126

SUPPORT

RH, Serial Range: -C4926

1шт.

16

5170366

PLATE

1шт.

17

47129830

TIE-ROD

1шт.

18

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

19

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

20

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

3шт.

21

82000705

NUMBER PLATE LAMP,12V, 10W

1шт.

22

81867061

BULB,12V, 21W

1шт.

23

13276214

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

2шт.

24

15896214

NUT,M6, Cl 8

2шт.

25

82011888

WASHER

M6x1

1шт.

26

5173057

GUARD

RH, L/Cab

1шт.

27

323093A1

BULB

50W

2шт.

27

87283179

BULB,H4, 12V, 60/55W

60/65W

2шт.

28

47136590

SUPPORT

RH, Start Serial: D4926

1шт.
