Запчасти Case IH JX1080U (1.91.7[02]) - CAB - LIGHTING & PARTS (10) - OPERATORS PLATFORM/CAB

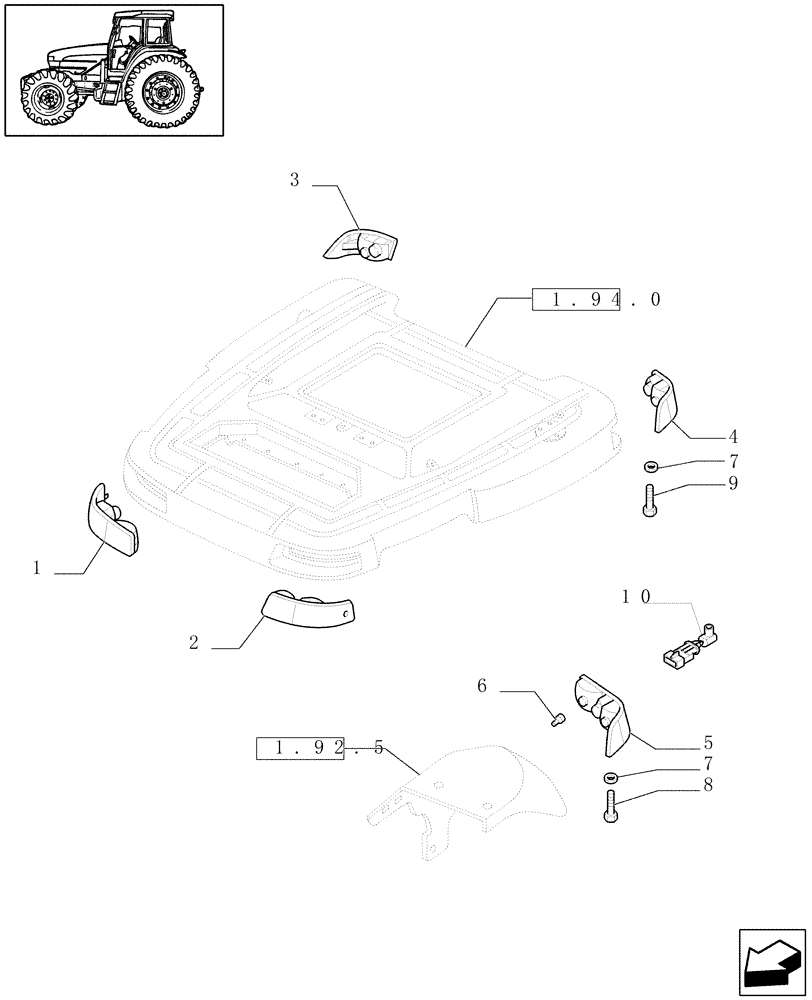

Схема запчастей Case IH JX1080U - (1.91.7[02]) - CAB - LIGHTING & PARTS (10) - OPERATORS PLATFORM/CAB
6
7
1
2
5
7
10
4
9
3
1.92.5
1.94.0
8

Артикул

Название

Примечание

Количество

1

44995035

FRONT LAMP,Halogen, 12V, Amber/Clear

RH, Work

1шт.

2

44995034

FRONT LAMP,Halogen, 12V, Amber/Clear

LH, Work

1шт.

3

44995031

LAMP,Amber

RH Rear Work Lamp

1шт.

W/O bulb or socket

1шт.

4

44995030

LAMP,Amber

LH Rear Work Lamp

1шт.

W/O bulb or socket

1шт.

5

279226A1

TAIL LAMP,12V, Amber/Red

RH, Rear

1шт.

5

279225A1

TAIL LAMP,12V, Amber/Red

LH, Rear

1шт.

6

44995043

BULB

2шт.

7

14496429

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

D=6

16шт.

8

82880748

SCREW,Pozidrive, Pan HD, M6 x 2 x 14mm, Cl 4.8

Pan Hd, M6 x 2 x 14

6шт.

9

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

8шт.

9

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

10

47137069

ELECTRIC CABLE

1шт.

Выбрано товаров: 14
