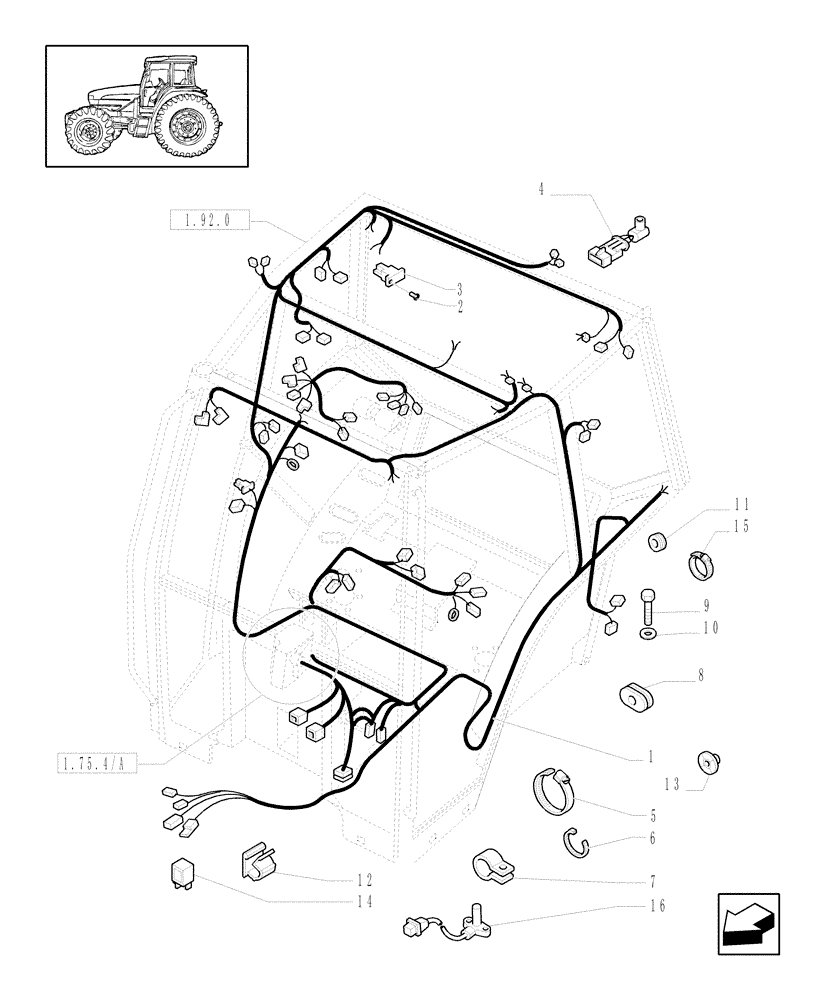

Запчасти Case IH JX1080U (1.91.4[01]) - CAB - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB

1

87305294

ELECTRIC CABLE

Main, INCL.4,11, Serial Range: -C5184

1шт.

1

87314336

ELECTRIC CABLE

Main, Incl. 4, 11, 15, Start Serial: D5184

1шт.

2

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

3

5168047

ELEC CONNECTOR,Female, 2 Pin

1шт.

4

47137069

ELECTRIC CABLE

Rear Lamp Ext.

2шт.

5

5143428

CABLE TIE,116mm L

CABLE STRAP

1шт.

6

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

6

14560487

CABLE TIE,132.5mm lg

CABLE STRAP

1шт.

7

10441190

CLAMP,8mm, Coat, 7mm Bolt Hole, P Type

2шт.

8

87565310

GROMMET,8mm ID x 28mm x 38mm x 10mm

1шт.

9

14038014

SCREW,M8 x 15mm

M8x15

4шт.

10

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

10

10615674

WASHER

D=8

4шт.

11

10399180

RING,12mm ID x 24mm OD x 11mm Thk

1шт.

11

82016008

GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk

2шт.

12

5182865

CLIP

2шт.

13

5198244

DECAL

2шт.

14

5179765

DIODE,6A, 400V

1шт.

15

14560187

COLLAR,199mm L

L=203.2mm

1шт.

16

5150991

SENSOR

PTO Speed, Pick-up Stem 30mm long, Serial Range: -C5042

1шт.

16

87564776

SENSOR

PTO Speed, Pick-up Stem 23.5mm long, Start Serial: D5042

1шт.
