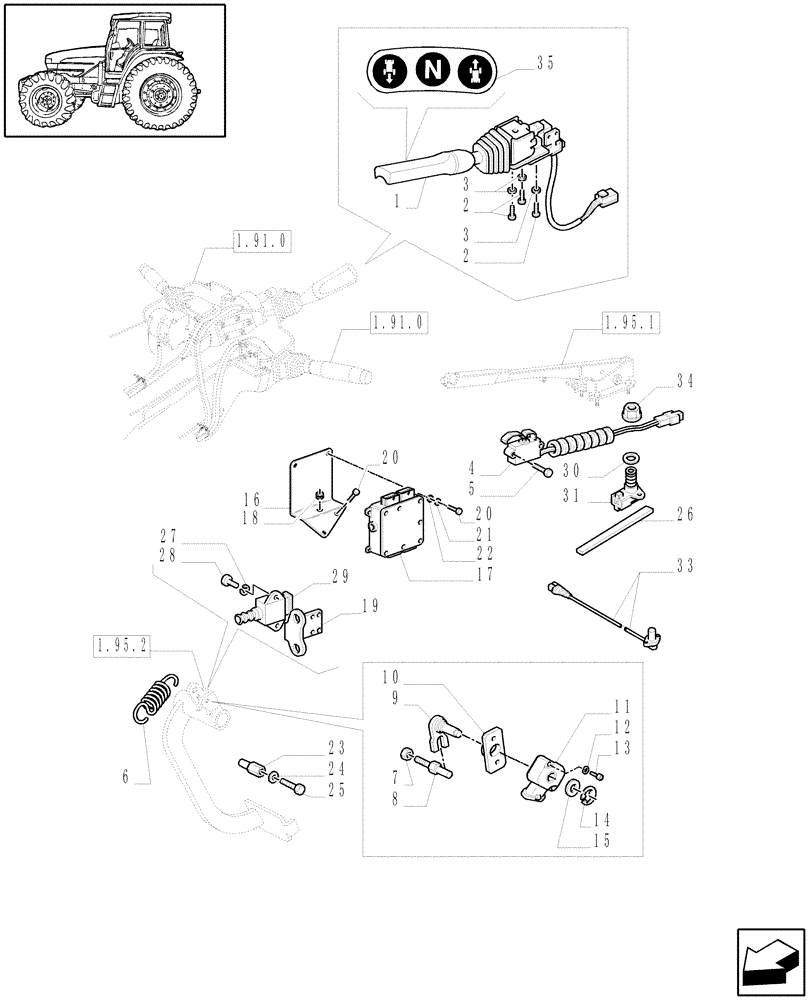

Запчасти Case IH JX1080U (1.91.1/01[01]) - (VAR.275-279) POWER SHUTTLE - HI-LO - 30-40 KMH - HYDR. PTO - CONTROL UNIT & SWITCHES - C6275 (10) - OPERATORS PLATFORM/CAB

1

82034514

SWITCH ASSY

Forward/Reverse

1шт.

2

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

3шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

4

82005257

SWITCH ASSY

3 wires

1шт.

5

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

2шт.

6

5119832

SPRING,Cylindrical, 32mm OD x 88mm L

1шт.

7

12574211

NUT,M6 x 1, Cl 8

1шт.

8

87303140

PIN,6mm OD x 34mm L

1шт.

9

87303139

YOKE

1шт.

10

81864090

RETAINER

1шт.

11

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Serial Range: -C5735

1шт.

11

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D5735

1шт.

12

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

13

15210624

BOLT,Hex, M4 x 35mm, Cl 8.8, Full Thd

2шт.

14

87016950

SNAP RING,M7, Ext

1шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

16

5184513

BRACKET

1шт.

17

87314195

ECU

, Serial Range: -C5184

1шт.

17

87360488

ECU

, Serial Range: D5184-C5626

1шт.

17

87739361

ECU

, Start Serial: D5626

1шт.

18

5175382

RUBBER RING

1шт.

19

5182315

BRACKET

1шт.

20

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

3шт.

21

10571574

LOCK WASHER

2шт.

22

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

2шт.

23

5186201

PIN,10mm OD x 30mm L

1шт.

24

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

25

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

26

5166332

INSULATOR,20mm W x 190mm L x 1mm Thk

1шт.

27

10571374

LOCK WASHER

D=4

2шт.

28

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

29

83961542

SWITCH

1шт.

30

47129277

SPACER

1шт.

31

5195039

SWITCH

Hand Brake

1шт.

32

13375211

SCREW,M6 x 20mm

3шт.

33

87564763

SENSOR

PTO Speed, Start Serial: D5042

1шт.

34

5198051

NUT

1шт.

35

87364176

DECAL

1шт.
