Запчасти Case IH JX1080U (1.82.7/17D) - (VAR.239) 1CONTROL VALVE + 1W/FLOAT + 1W/FLOAT AND KICKOUT - PARTS - C5631 (07) - HYDRAULIC SYSTEM

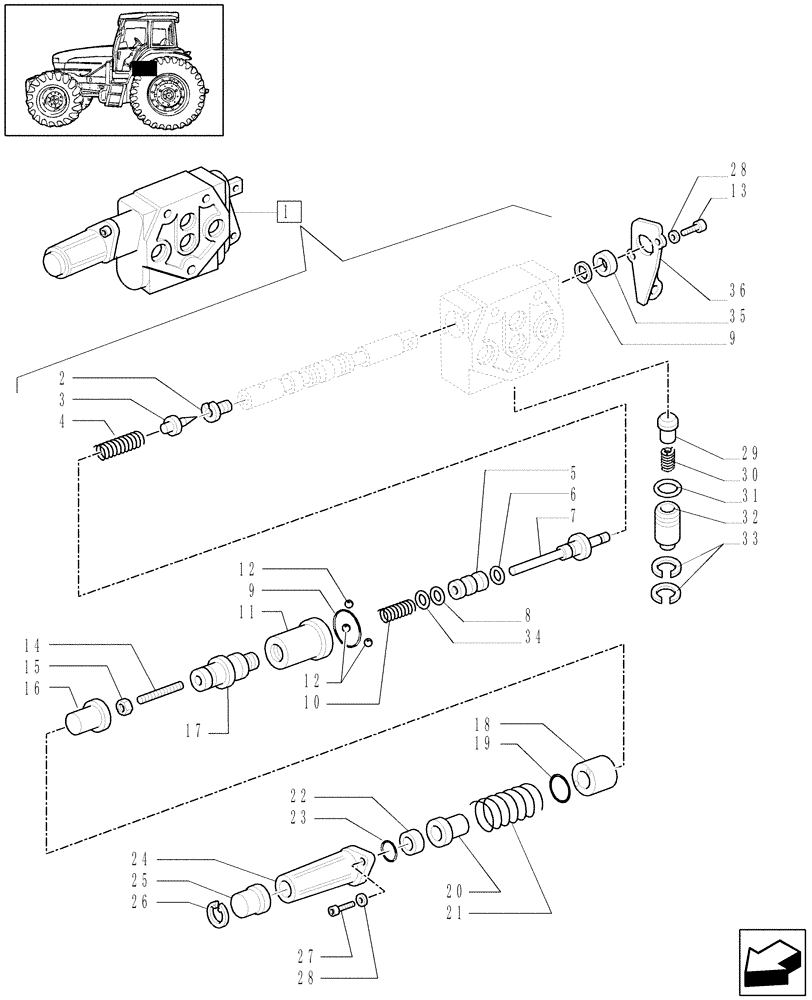

Схема запчастей Case IH JX1080U - (1.82.7/17D) - (VAR.239) 1CONTROL VALVE + 1W/FLOAT + 1W/FLOAT AND KICKOUT - PARTS - C5631 (07) - HYDRAULIC SYSTEM
16
35
2
9
21
27
25
12
28
3
9
15
17
30
14
28
11
26
8
19
4
24
18
22
34
1
13
29
36
32
31
33
10
7
20
23
5
12
6

Артикул

Название

Примечание

Количество

1

87303332

CONTROL VALVE

Assy

1шт.

2

5143554

PLUG,Slot, M7 x 0.75

1шт.

3

5143555

PIN,5.5mm OD x 12mm L

1шт.

4

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

5

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

6

5143558

O-RING,1.78mm Thk x 2.54mm ID

1.78 x 2.57

1шт.

7

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

8

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

D=9.91

1шт.

9

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

10

5163369

SPRING,Compression, 9mm OD x 38mm L

1шт.

11

5179066

BUSHING,16mm ID x 27mm OD x 47mm L

1шт.

12

20063420

BALL,3.96mm OD, Gr 100

D=5/32

3шт.

13

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

2шт.

14

5163362

ADJUSTMENT SCREW,Hdls Hex Skt, M3.5 x 10mm

M5 x 0.8

1шт.

15

15896421

NUT,M5, Cl 10

1шт.

16

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

1шт.

17

5163365

PLUG,M14 x 1.5

1шт.

18

5143578

SPACER,28mm ID x 32mm OD x 29.5mm L

1шт.

19

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

20

5143575

CUP,13mm ID x 21.5mm OD x 18mm Thk

1шт.

21

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

22

5143576

SPACER,13mm ID x 18.5mm OD x 5mm L

1шт.

23

5143577

SNAP RING,11.2mm D x 1.6mm Thk

D=13

1шт.

24

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

25

5143567

COVER

1шт.

26

13421276

SNAP RING,M28, Int

1шт.

27

5143621

HEX SOC SCREW,6.35mm OD x 48.5mm L

2шт.

28

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

29

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

30

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

31

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

32

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

33

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

2шт.

34

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

M8.73 ID x 1.78 Thk

1шт.

35

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

36

5172326

SUPPORT

1шт.

Выбрано товаров: 36
