Запчасти Case IH JX1080U (1.82.7/16[04]) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - VALVE - D4936 (07) - HYDRAULIC SYSTEM

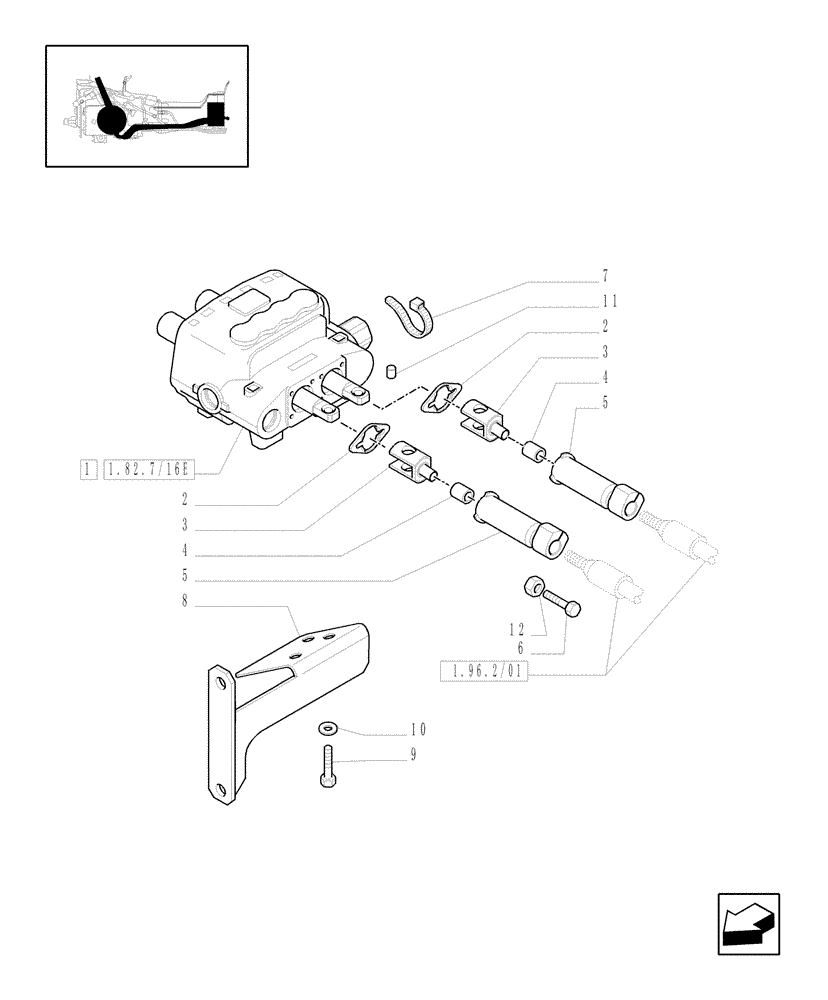

Схема запчастей Case IH JX1080U - (1.82.7/16[04]) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - VALVE - D4936 (07) - HYDRAULIC SYSTEM
6
8
4
1.96.2/01
3
2
7
9
3
12
1.82.7/16e
2
5
10
4
1
11
5

Артикул

Название

Примечание

Количество

1

47132112

HYDRAULIC VALVE

ASSY

1шт.

2

87303905

FLANGE

2шт.

3

87303906

YOKE

2шт.

4

87303907

BUSHING,16.2mm ID x 19.5mm OD x 15.5mm L

2шт.

5

87302881

DISTRIBUTOR,14 - 20 mm ID x 95 mm L

2шт.

6

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

6шт.

7

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

8

47137211

SUPPORT

1шт.

9

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

11

87332065

PIN,9mm OD x 17mm L

2шт.

12

86509265

NUT,M5, Cl 10

6шт.

Выбрано товаров: 12
