Запчасти Case IH JX1080U (1.82.7/16[03]) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - PIPES - D4936 (07) - HYDRAULIC SYSTEM

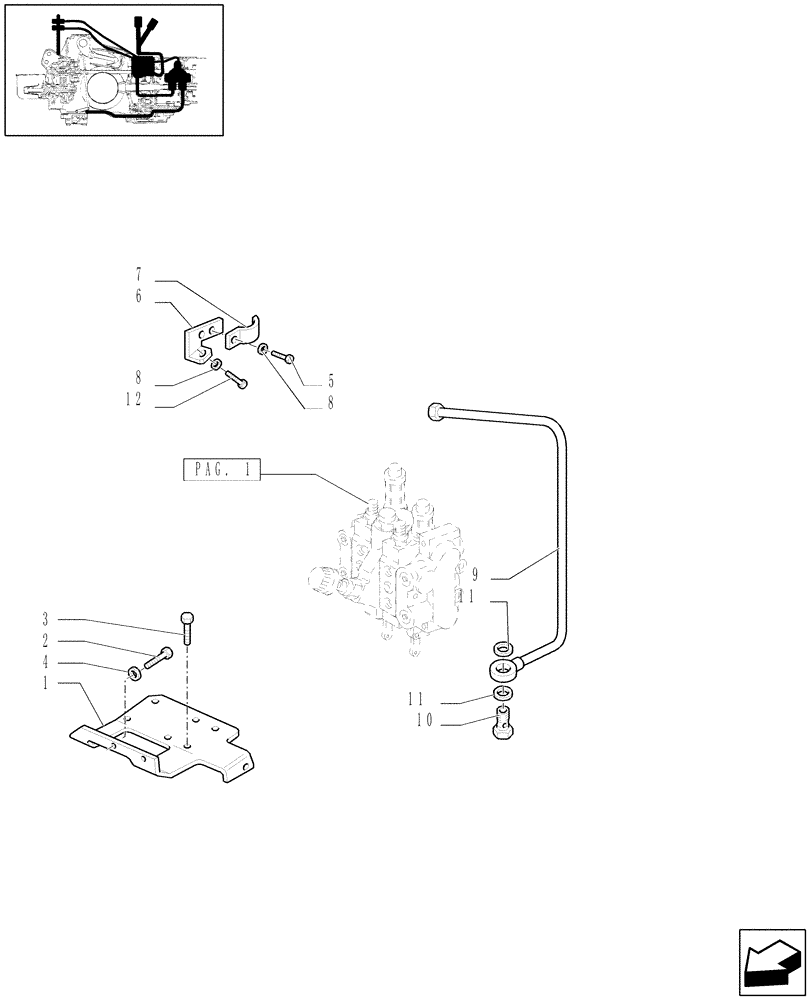

Схема запчастей Case IH JX1080U - (1.82.7/16[03]) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - PIPES - D4936 (07) - HYDRAULIC SYSTEM
4
3
7
11
8
11
8
2
9
10
6
5
12
pag. 1
1

Артикул

Название

Примечание

Количество

1

47123301

SUPPORT

1шт.

2

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

3

11109221

BOLT,Hex, M12 x 22mm, Cl 8.8, Full Thd

M10x1.75x22

4шт.

4

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

5

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

6

5179396

BRACKET

L/Cab

1шт.

7

5156414

CLAMP,20mm ID, 6.5mm Bolt Hole, J Type

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

9

47123635

HYD TUBE

1шт.

10

47124882

BANJO BOLT

M27x2x45

1шт.

11

47124968

SEALING WASHER

D=27

2шт.

12

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 12
