Запчасти Case IH JX1080U (1.82.7/16[02]) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - PIPES - D4936 (07) - HYDRAULIC SYSTEM

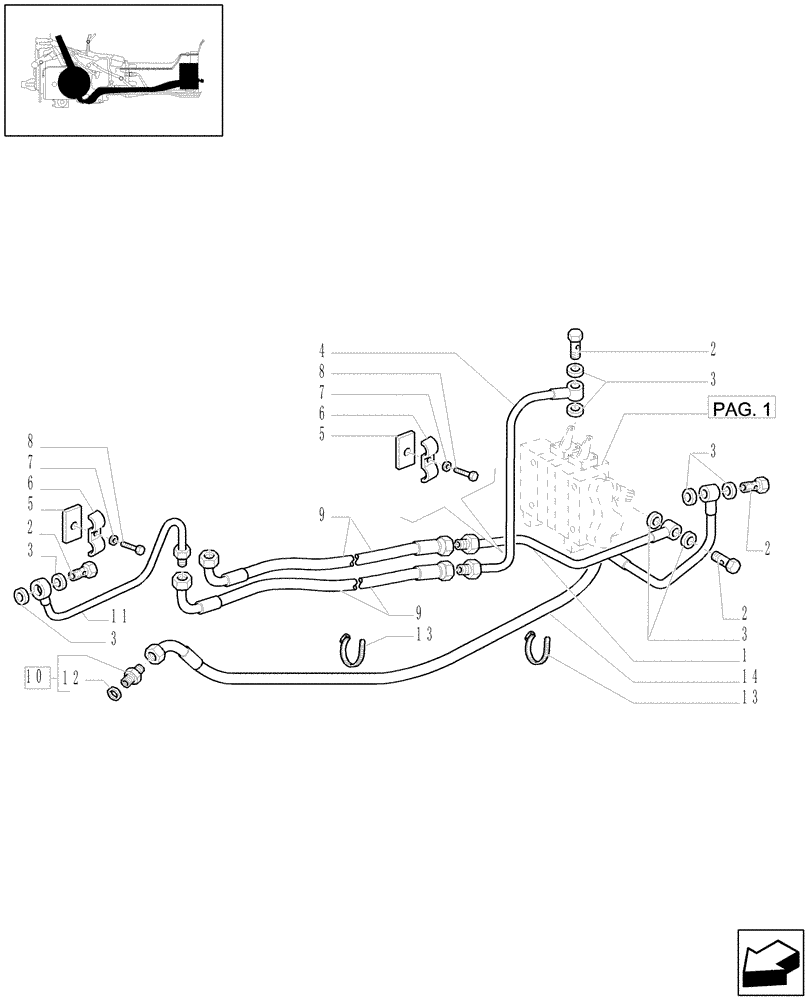

Схема запчастей Case IH JX1080U - (1.82.7/16[02]) - (VAR.389/1) TWO FRONT CONTROL VALVES FOR REAR "BOSCH" CONTROL VALVES - PIPES - D4936 (07) - HYDRAULIC SYSTEM
6
1
1
3
3
9
13
3
4
2
2
1
5
8
2
1
4
3
1
3
1
2
7
6
3
8
9
1
5
7
0
2

Артикул

Название

Примечание

Количество

1

5179390

HYD TUBE

L/Cab

1шт.

2

5112588

BANJO BOLT,M22 x 1.5 x 40mm

5шт.

3

10261860

COPPER WASHER,22.3mm ID x 30mm OD x 1.5mm Thk

10шт.

4

5179388

HYD TUBE

L/Cab

1шт.

5

5179404

SUPPORT

L/Cab

2шт.

6

5179395

CLAMP

L/Cab

2шт.

7

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

8

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

9

5179386

FLEXIBLE HOSE,16mm ID x 890mm L, SAE 100R2

1" 1/16-12, L/Cab

2шт.

10

47123789

HYD CONNECTOR

M27x2 - 1-1/16"-12, L/Cab

1шт.

11

47123790

HYD TUBE

1шт.

12

14438185

O-RING,24mm ID x 3mm

1шт.

13

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

14

5179387

FLEXIBLE HOSE

L/Cab

1шт.

Выбрано товаров: 14
