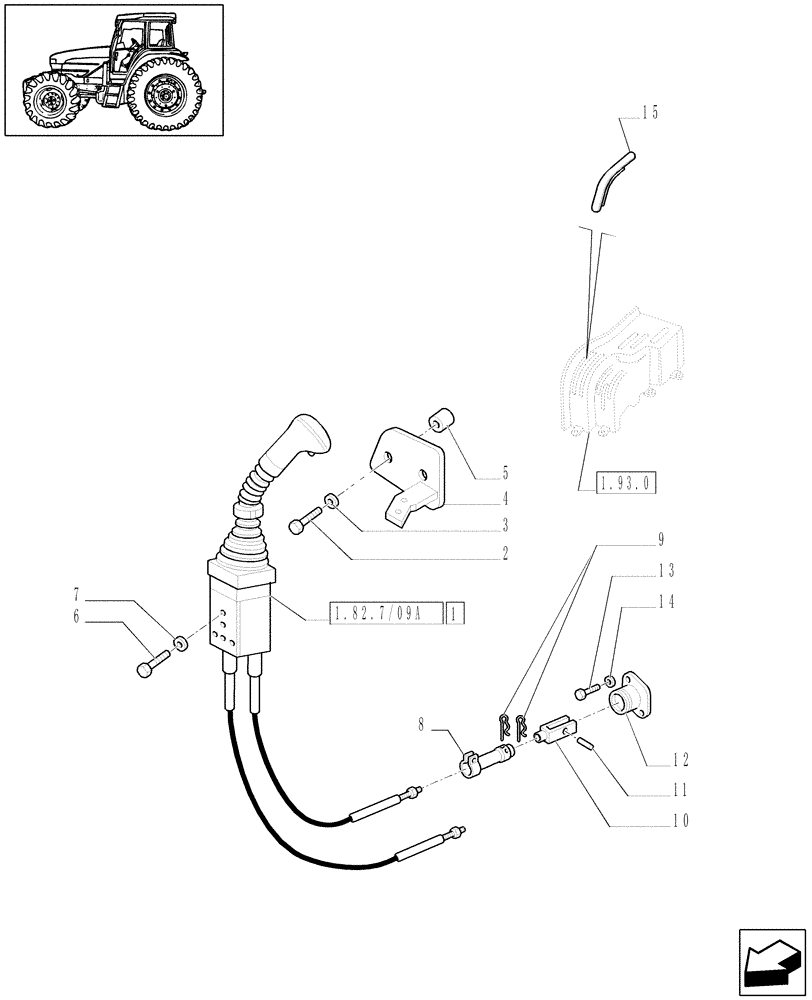

Запчасти Case IH JX1080U (1.82.7/09) - (VAR.723) CONTROL VALVE JOYSTICK (CLOSED CENTER/CCLS) (07) - HYDRAULIC SYSTEM

1

47131617

JOYSTICK

, Start Serial: C5462

1шт.

1

87567641

CONTROL

, Serial Range: -D5462

1шт.

2

11107421

BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

3

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

D10

2шт.

4

47132122

BRACKET

W/Cab

1шт.

5

5154839

SPACER,21mm ID x 35mm OD x 22mm L

2шт.

6

16044821

SCREW,Hex, M8 x 80mm, Cl 8.8

2шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

87356033

COUPLING,25mm ID x 35mm OD x 97mm L

2шт.

9

82026318

COTTER PIN,1/8 x 2 5/16

4шт.

10

47127821

CLEVIS

2шт.

11

82001332

PIN,6.35mm OD x 16mm L

2шт.

12

47127827

SUPPORT

2шт.

13

10902724

SCREW,Hex, M6 x 28mm, Cl 8.8, Full Thd

2шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

15

5128710

COVER

L/Cab

2шт.
