Запчасти Case IH JX1080U (1.82.7[06]) - SINGLE-DOUBLE EFFECT DISTRIBUTOR - PIPES AND QUICK COUPLINGS - D5631 (07) - HYDRAULIC SYSTEM

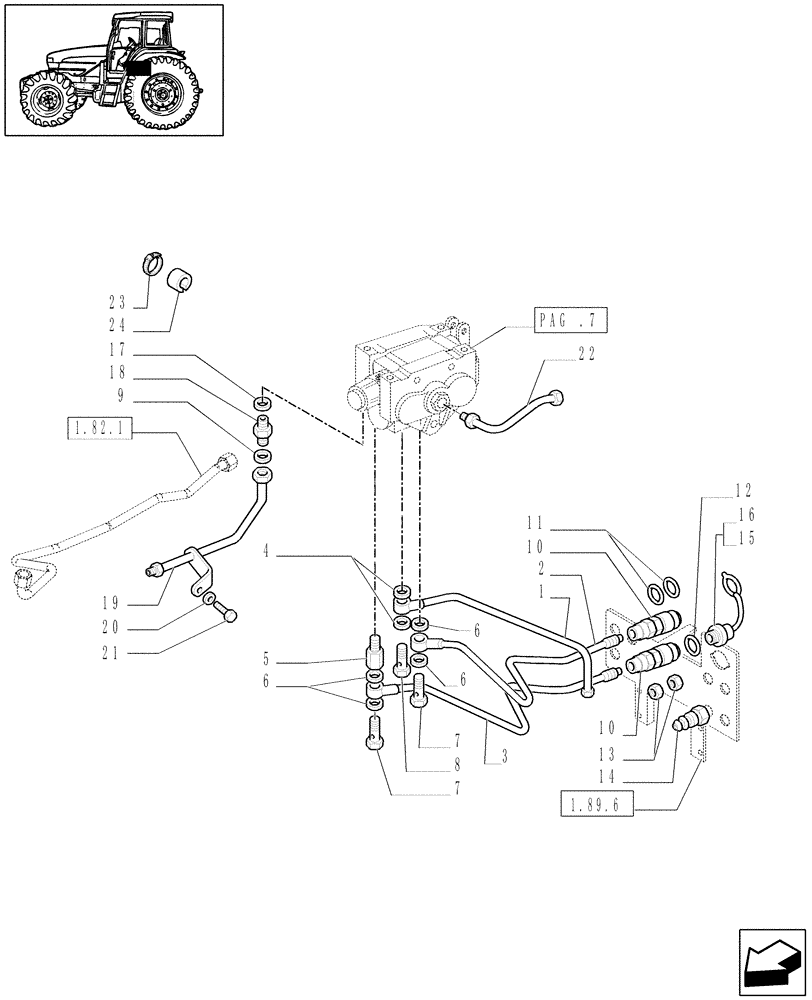

Схема запчастей Case IH JX1080U - (1.82.7[06]) - SINGLE-DOUBLE EFFECT DISTRIBUTOR - PIPES AND QUICK COUPLINGS - D5631 (07) - HYDRAULIC SYSTEM
18
10
1.82.1
5
6
15
16
6
9
12
6
pag .7
20
13
3
19
21
7
7
10
14
17
1.89.6
1
23
8
22
11
24
2
4

Артикул

Название

Примечание

Количество

1

5171297

HYD TUBE

1шт.

2

5185504

HYD TUBE

1шт.

3

5185503

HYD TUBE

1шт.

4

87332142

SEAL,23.5mm ID x 30mm OD x 1.5mm Thk

D=22

2шт.

5

5121789

REDUCER,M18 x 1.5 M ORB; M18 x 1.5 F ORB

M8

1шт.

6

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

4шт.

7

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

2шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

10

5152194

COUPLING, QUICK, FEM

2шт.

11

9961686

SEAL KIT

FASTER

1шт.

12

9961685

GASKET

PARKER

1шт.

13

5129168

BHD LOCK NUT,M24 x 1.5

M24 x 1.5

4шт.

14

5101741

QUICK MALE COUPLING

2шт.

15

9962533

PLUG

FASTER

2шт.

16

9962532

PLUG

PARKER

2шт.

17

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

18

5185525

HYD CONNECTOR,15.5 - M22 x 1.5 ORFS

Straight, 1-1/16"-12UN - M22 x 1.5

1шт.

19

87309865

TUBE

1шт.

20

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

1шт.

21

15540024

BOLT,Hex, M12 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

22

5166874

HYD TUBE

1шт.

23

13000990

COLLAR,60mm - 80mm, Worm Gear

D=60-80

1шт.

24

4959735

SPACER,18mm ID x 25mm OD x 30mm L

1шт.

Выбрано товаров: 24
