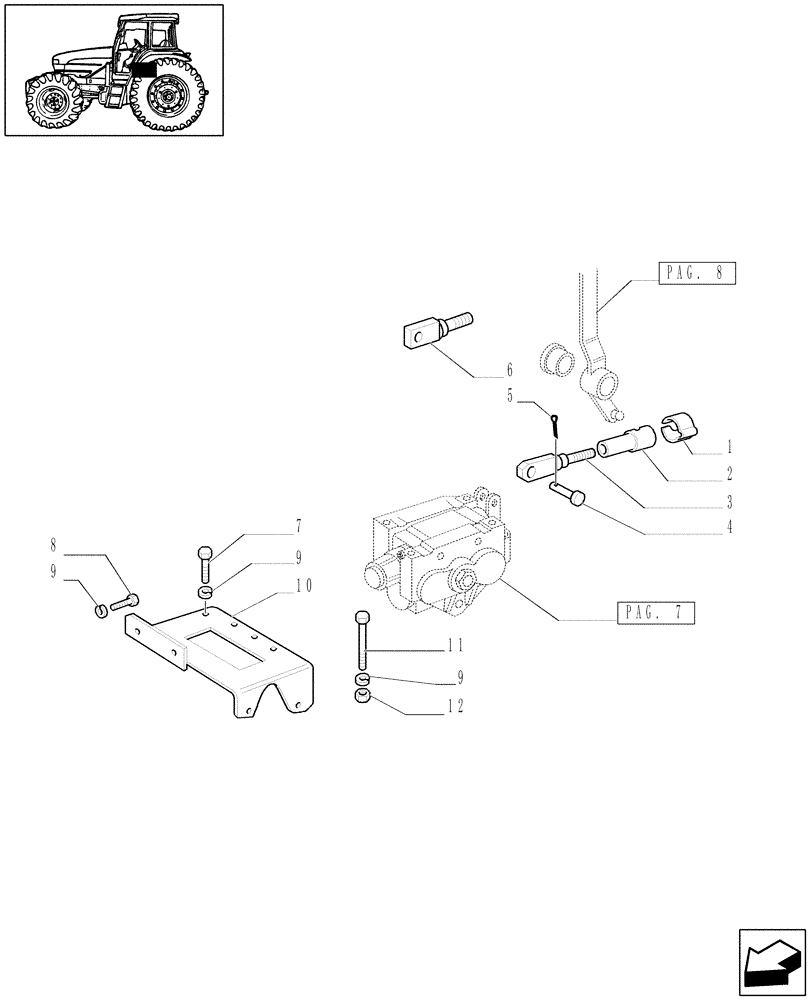

Запчасти Case IH JX1080U (1.82.7[05]) - SINGLE EFFECT DISTRIBUTOR - CONTROL LEVERS - D5631 (07) - HYDRAULIC SYSTEM

1

10125574

CLAMP,13mm

1шт.

2

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

1шт.

3

5169149

ROD-TIP

L/Cab, L=70MM

1шт.

4

5126824

PIN,6.4mm OD x 21.5mm L

1шт.

5

10734301

COTTER PIN,M2 x 18

1шт.

6

5126037

ROD-TIP

W/Cab, L = 42MM

1шт.

7

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

8

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

9

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

8шт.

10

5198044

SUPPORT

1шт.

11

11343724

BOLT,Hex, M10 x 1.25 x 65mm, Cl 8.8

3шт.

12

12164714

NUT,M10 x 1.25, Cl 8

3шт.
