Запчасти Case IH JX1080U (1.82.7[03]) - DOUBLE EFFECT DISTRIBUTOR - CONTROL VALVES & GASKETS - C5631 (07) - HYDRAULIC SYSTEM

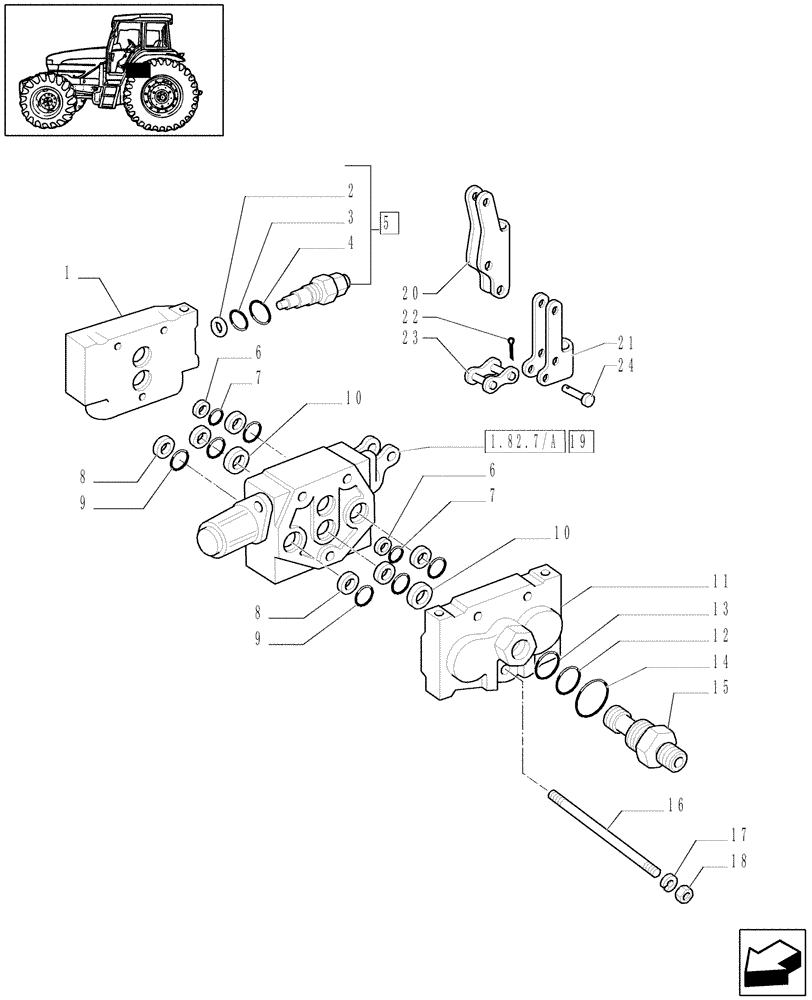

Схема запчастей Case IH JX1080U - (1.82.7[03]) - DOUBLE EFFECT DISTRIBUTOR - CONTROL VALVES & GASKETS - C5631 (07) - HYDRAULIC SYSTEM
11
5
22
24
16
4
21
23
6
9
2
17
7
1.82.7/a
7
10
18
19
15
14
1
20
13
6
8
8
9
10
12
3

Артикул

Название

Примечание

Количество

1

5116841

HYD VALVE SECTION

1шт.

2

80128359

O-RING

-016, 70 Duro, .614" ID x .070" Thk

1шт.

3

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

4

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

5

5131906

SAFETY VALVE

1шт.

6

5146467

RING,19.2mm ID x 20.2mm OD x 2.3mm Thk

M19.2

2шт.

7

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

8

5180283

RING,16mm ID x 18.5mm OD x 2.1mm Thk

17 x 18.5 x 2.1

6шт.

9

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

6шт.

10

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

M24

2шт.

11

5146541

COVER

1шт.

12

5146476

RING,17.91mm ID x 20.61mm OD x 1.24mm Thk

1шт.

13

5135735

O-RING,1.78mm Thk x 17.17mm ID, 80 Duro

1шт.

14

5116854

O-RING,27.05mm ID x 34.93mm OD x 3mm Thk

1шт.

15

5146535

COUPLING,M22 x 1.5 x 3/4"

1шт.

16

5146465

STUD,3/8" - 24 x 4-3/8"

3шт.

17

10569471

LOCK WASHER,Lock, 3/8"

D=10

6шт.

18

5116857

NUT,3/8" - 24

3/8"-24 UNF-2B

6шт.

19

5154667

CONTROL VALVE

1шт.

20

5143088

LINK

W/Cab

1шт.

21

5126027

LINK

L/Cab

1шт.

22

10734301

COTTER PIN,M2 x 18

1шт.

23

5116896

LINK,19.05mm Pitch

1шт.

24

5126824

PIN,6.4mm OD x 21.5mm L

1шт.

Выбрано товаров: 24
