Запчасти Case IH JX1080U (1.82.4[02]) - LIFT CONTROL VALVE - VALVES & PARTS (07) - HYDRAULIC SYSTEM

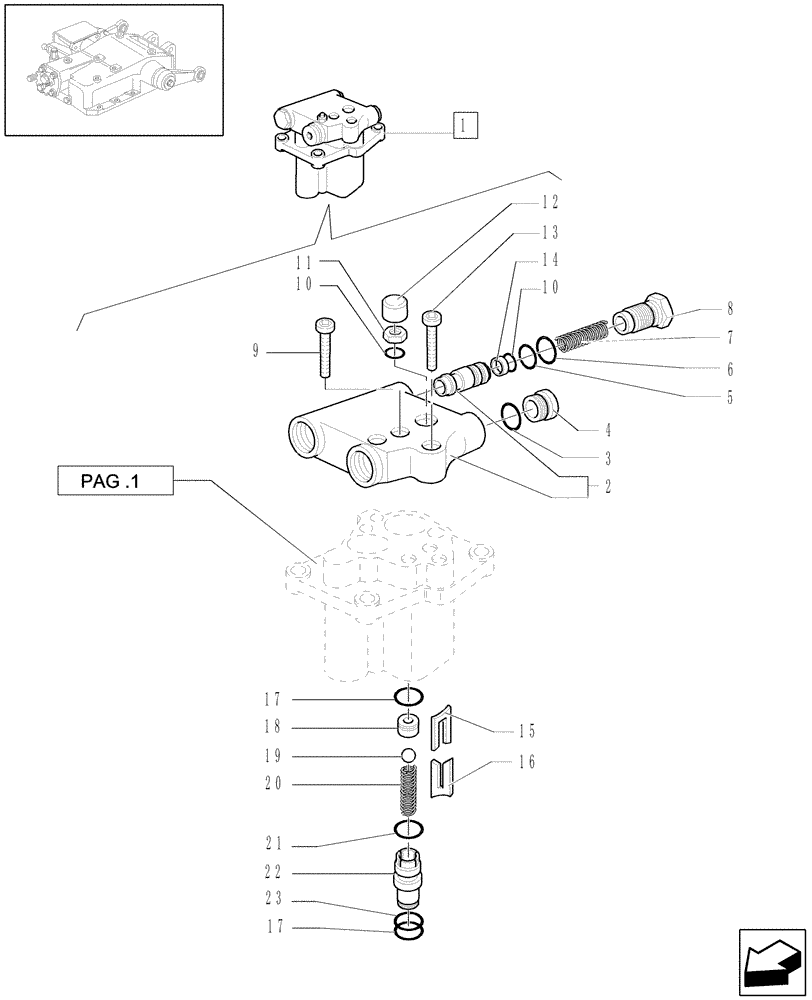

Схема запчастей Case IH JX1080U - (1.82.4[02]) - LIFT CONTROL VALVE - VALVES & PARTS (07) - HYDRAULIC SYSTEM
7
16
19
20
17
10
8
14
3
6
11
5
17
18
10
13
1
21
12
9
2
4
23
15
22

Артикул

Название

Примечание

Количество

1

5180934

CONTROL VALVE

, Serial Range: -C4975

1шт.

47135711R

REMAN-HYD VALVE

JX1070U, JX1080U, JX1090U, JX1100U All Serial Range: -C4975 (1/04-), Reman for New P/N 5180934

1шт.

47135711C

CORE-VALVE HYD

Return Number

1шт.

1

47135711

CONTROL VALVE

, Start Serial: D4975

1шт.

2

5166310

COVER

1шт.

3

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

4

10119414

PLUG,M18 x 1.5 x 16

1шт.

5

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

7

5156466

SPRING

1шт.

8

5156465

PLUG,M20 x 1.5

1шт.

9

14308324

SCREW,M10 x 1.25 x 70mm, Cl 8.8

1шт.

10

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

M8.73 ID x 1.78 Thk

2шт.

11

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

12

5132136

CAP COVER,M8

1шт.

13

14307624

HEX SOC SCREW,M10 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

14

5137198

GUIDE RING,8.6mm ID x 13mm OD x 2.3mm W

D = 13 x 2.2

1шт.

15

5148905

SPACER,3mm Thk

1шт.

16

5148907

SPACER,3mm Thk

1шт.

17

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

18

5156290

VALVE SEAT,20mm OD x 12mm Thk

1шт.

19

20063580

BALL,13.49mm OD, Gr 100

D = 17/32

1шт.

20

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

1шт.

21

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

22

5156291

HYD CONNECTOR,M24 x 1.5

1шт.

23

4958830

BACK-UP RING,16.26mm ID x 20.62mm OD x 1.14mm Thk

1шт.

Выбрано товаров: 26
