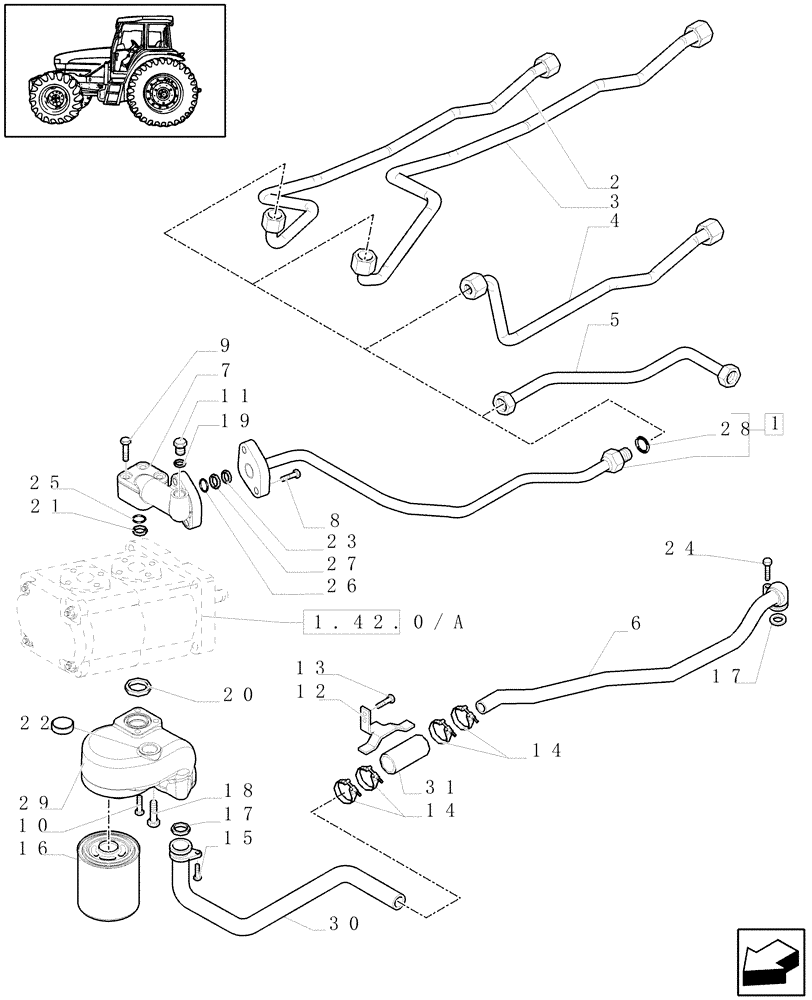

Запчасти Case IH JX1080U (1.82.1[02]) - LIFT - PIPES & PARTS (07) - HYDRAULIC SYSTEM

1

87367815

TUBE,18 mm DIA x 559.5, 208 mm L

, Start Serial: D5393

1шт.

1

47132353

RIGID TUBE

Front, Serial Range: -C5393

1шт.

2

87309867

TUBE

W/Kontak Remotes, L/Trailer Brake Valve

1шт.

3

87309865

TUBE

W/Bosch Remotes, L/Trailer Brake Valve

1шт.

4

87309869

HYD TUBE

W/Trailer Brake Valve France

1шт.

5

47129758

HYD TUBE

W/Trailer Brake Valve Italy

1шт.

6

47129736

TUBE

Rear Suction, Serial Range: -C4936

1шт.

6

87309021

TUBE,45 mm OD

Rear Suction, Start Serial: D4936

1шт.

7

87353468

MANIFOLD

, Start Serial: D5370

1шт.

7

47132039

MANIFOLD

, Serial Range: -C5370

1шт.

8

80120228

SCREW

M8x20

2шт.

9

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

10

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

12

47129743

SUPPORT

1шт.

13

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

14

13000790

HOSE CLAMP,40mm - 60mm, Worm Gear

D=40-60

4шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

16

84168722

HYDRAULIC OIL FILTER

1шт.

Valid with JX1070U, JX1090U, JX1100U Models

1шт.

17

5174527

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

18

14309020

HEX SOC SCREW,M8 x 1 x 70mm, Cl 8.8

1шт.

19

10261060

SEALING WASHER,12.2mm ID x 16mm OD x 1.5mm Thk

1шт.

20

14463680

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

21

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

1шт.

22

14328801

PLUG,M22, Tapered

1шт.

23

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

, Serial Range: -C4992

1шт.

24

15541221

SCREW,Hex, M12 x 1.25 x 70mm, Cl 8.8

1шт.

25

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

26

14457681

O-RING,0.103" Thk x 0.862" ID, -118, Cl 7, 75 Duro

, Start Serial: D4992

1шт.

27

87307155

SEAL,27mm ID x 28mm OD x 2.2mm Thk

27x0.5, Start Serial: D4992

1шт.

28

89991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

29

47129567

FILTER HEAD

1шт.

30

47129740

TUBE

Front Suction, Serial Range: -C4936

1шт.

30

87308977

TUBE,45 mm OD

Front Suction, Start Serial: D4936

1шт.

31

47128011

SLEEVE

1шт.
