Запчасти Case IH JX1080U (1.82.0/02[01]) - (VAR.250) ELECTRONIC LIFTING - PARTS (07) - HYDRAULIC SYSTEM

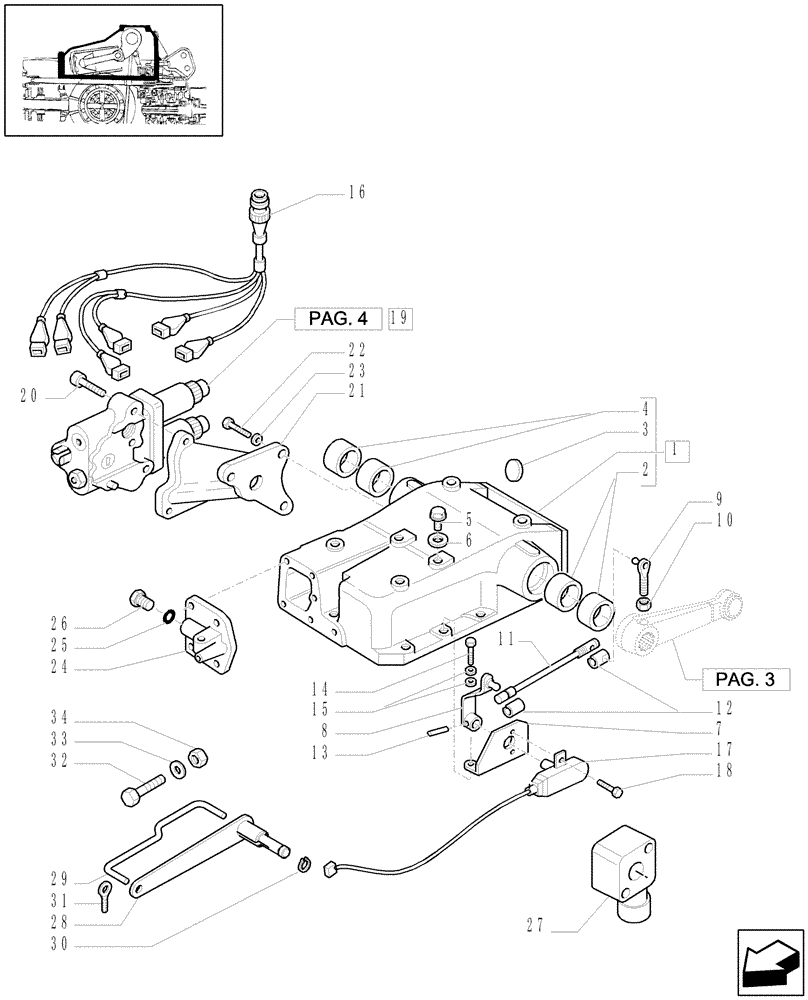

Схема запчастей Case IH JX1080U - (1.82.0/02[01]) - (VAR.250) ELECTRONIC LIFTING - PARTS (07) - HYDRAULIC SYSTEM
16
5
6
3
18
14
21
23
27
34
1
20
26
9
17
10
29
24
22
8
19
4
15
30
7
12
33
28
32
2
11
25
31
13

Артикул

Название

Примечание

Количество

1

5186434

BODY

1шт.

2

5186405

BUSHING,62.8mm ID x 68.03mm OD x 40mm L

62.8 x 68 x 158 x 40, LH

2шт.

3

14328701

PLUG,M20, Tapered

1шт.

4

5186406

BUSHING,55.1mm ID x 60.03mm OD x 40mm L

55 x 60 x 40, RH

2шт.

5

10305171

PLUG,M22 x 1.5 x 21

1шт.

6

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

22.7 x 30 x 2

1шт.

7

5185268

BRACKET

1шт.

8

5185237

LEVER

, Serial Range: -C4921

1шт.

9

5185241

PIN

, Serial Range: -C4921

1шт.

10

15896211

NUT,M6, Cl 8

1шт.

11

5185243

TIE-ROD

, Serial Range: -C4921

1шт.

12

10124774

CLIP,Lock, 8mm OD x 15mm L

, Serial Range: -C4921

2шт.

13

5183520

SCREW,BTN HD, M4 x 0.7 x 12.5mm, Cl 8.8

M4, Serial Range: -C4921

1шт.

14

14331621

HEX SOC SCREW,M12 x 1.25 x 55mm, Cl 8.8, Full Thd

2шт.

15

12646924

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

16

47129381

WIRE HARNESS

, Serial Range: -C4921

1шт.

16

87324689

WIRE HARNESS

, Start Serial: D4921

1шт.

EDC Harness Transmission Side

1шт.

17

5181786

SENSOR

, Serial Range: -C4921

1шт.

18

10445021

BOLT,Hex, M4 x 20mm, Cl 8.8, Full Thd

2шт.

19

5181601

HYDRAULIC VALVE

1шт.

20

14302224

HEX SOC SCREW,M8 x 1.25 x 55mm, Cl 8.8, Full Thd

3шт.

21

5181602

SUPPORT

1шт.

22

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

23

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

3шт.

24

5183173

FLANGE

1шт.

25

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

26

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

27

87543715

POTENTIOMETER,4000 Ohm, 13.5 VDC

Rotary Position Sensor, Start Serial: D4921

1шт.

28

47137726

LEVER

, Start Serial: D4921

1шт.

29

82014120

ROD

, Start Serial: D4921

1шт.

30

11087974

CIRCLIP,Ext., M8, DAC

, Start Serial: D4921

1шт.

31

5171855

EYEBOLT

, Start Serial: D4921

1шт.

32

86544168

BOLT,Hex, M5 x 35mm, Cl 8.8

, Start Serial: D4921

2шт.

33

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

, Start Serial: D4921

2шт.

34

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

, Start Serial: D4921

2шт.

Выбрано товаров: 36
