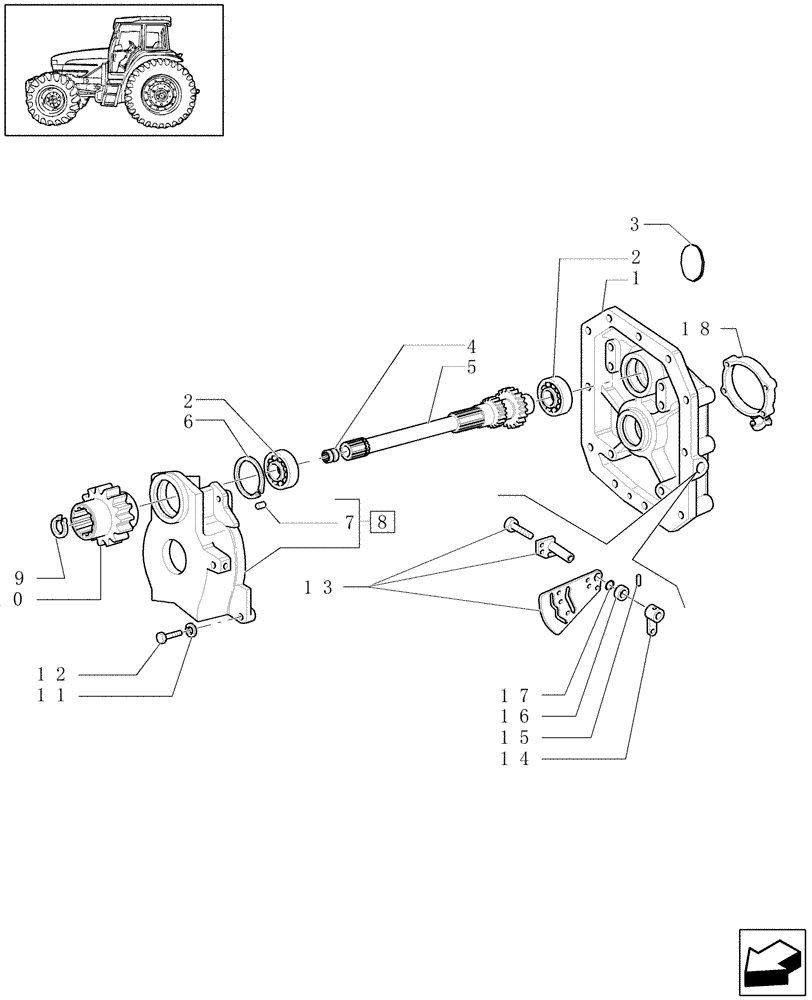

Запчасти Case IH JX1080U (1.80.1/11[01]) - (VAR.817) POWER TAKE-OFF 540-750-1000 R/M - SHAFT, GEARS, FORK (07) - HYDRAULIC SYSTEM

1

5162808

COVER

1шт.

2

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

2шт.

3

14328501

PLUG,M16, Tapered

1шт.

4

5103238

NEEDLE BEARING,15mm ID x 21mm OD x 16mm W

15x21x16

1шт.

5

47132988

SHAFT

1шт.

6

11062476

SNAP RING,M90, Int

1шт.

7

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

8

5163093

SUPPORT

1шт.

9

5109282

CIRCLIP,M35, Ext x 2.50 Thk

D=35mm

1шт.

10

5162807

DRIVEN GEAR

750 RPM

1шт.

11

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

12

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

13

5162792

SELECTOR

1шт.

14

5180999

LEVER

1шт.

15

14607270

LOCK PIN,M8 x 40, Slotted

1шт.

16

594832

RING,20.1mm ID x 24.75-24.8mm OD x 6mm Thk

1шт.

17

14457580

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

1шт.

18

5164283

SUPPORT

1шт.
