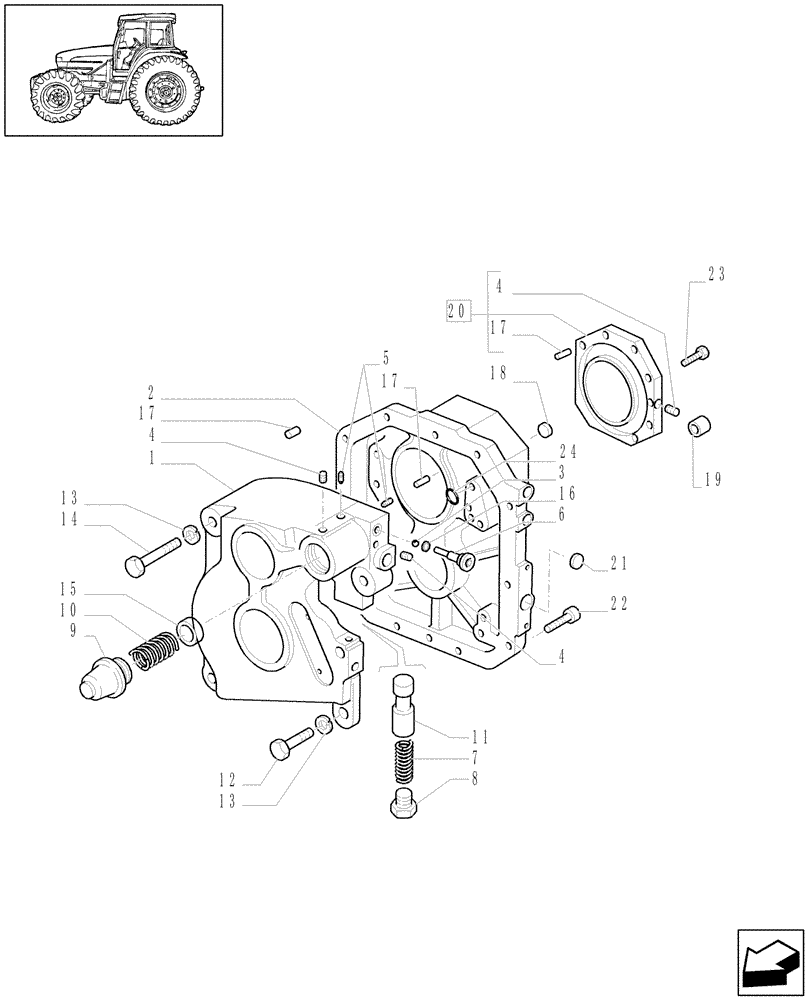

Запчасти Case IH JX1080U (1.80.1/07[01A]) - (VAR.729) SYNCHRO MESH GEARED POWER TAKE -OFF 540 - 750 - 1000 RPM - BOX AND COVER - D5204 (07) - HYDRAULIC SYSTEM

1

5189195

INCL. 4, 5

1шт.

2

87359671

COVER

1шт.

3

20419310

BALL

1шт.

4

14326001

PLUG,Hex Skt, M10 x 1.25 x 11mm, Cl 4.8

M10 x 1.25

3шт.

5

10269150

PLUG,M6 x 1 x 60mm L

2шт.

6

5183078

PLUG

1шт.

7

5166012

SPRING,Compression, 7.5mm OD x 57mm L

1шт.

8

5180551

PLUG

M6x1.5

1шт.

9

5197632

CAP

1шт.

10

5137481

SPRING,Compression, 32mm OD x 122mm L

1шт.

11

5194481

PISTON

1шт.

12

15540621

SCREW,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

13

11190779

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

14

15540921

SCREW,Hex, M12 x 1.25 x 55mm, Cl 8.8

1шт.

15

5137480

PISTON,40mm OD

1шт.

16

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

17

10839710

DOWEL,M10 x 15.00mm

M10 x 15

2шт.

18

14328601

PLUG,M18, Tapered

1шт.

19

5166305

SPACER

9x15x12

2шт.

20

5165974

COVER

1шт.

21

14328701

PLUG,M20, Tapered

1шт.

22

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

23

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

24

14456881

O-RING,0.362" ID x 0.103" Width

1шт.
