Запчасти Case IH JX1080U (1.80.1/01[02]) - (VAR.007) NA ONLY - POWER TAKEOFF, SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

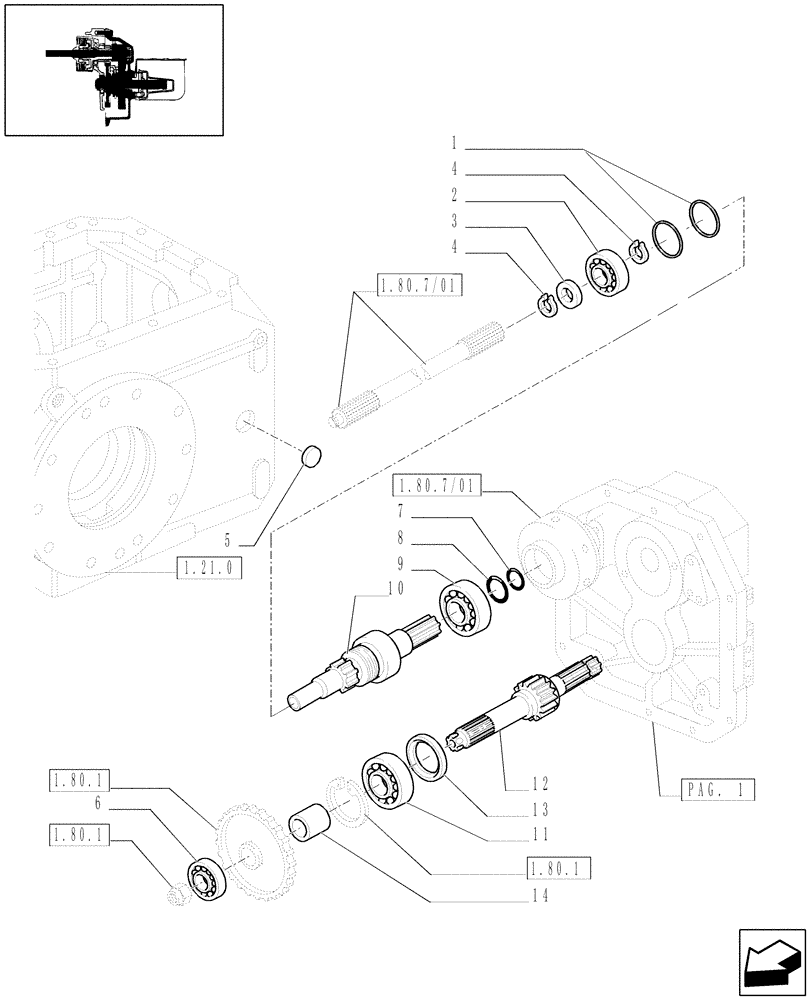

Схема запчастей Case IH JX1080U - (1.80.1/01[02]) - (VAR.007) NA ONLY - POWER TAKEOFF, SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM
4
11
14
13
8
6
12
1
4
1.80.7/01
1.21.0
1.80.1
1.80.1
1.80.1
1.80.7/01
pag. 1
10
5
2
7
3
9

Артикул

Название

Примечание

Количество

1

5175996

RETAINER

2шт.

2

28995900

BALL BEARING,45mm ID x 100mm OD x 25mm W

45X100X25

1шт.

3

4996869

THRUST WASHER,40.1mm ID x 62mm OD x 5mm Thk

1шт.

4

11068876

SNAP RING,M40, Ext

1шт.

5

14328501

PLUG,M16, Tapered

1шт.

6

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

35X80X21

1шт.

7

14454680

O-RING,1.489" ID x 0.07" Width

1шт.

8

14455080

O-RING,50.52mm ID x 1.78mm

1шт.

9

20973340

BALL BEARING,55.00mm x 100.00mm x 21.00mm

55X100X21

1шт.

10

5174261

SHAFT

1шт.

11

20943310

BALL BEARING,40mm ID x 90mm OD x 23mm W

40 x 90 x 23 mm

1шт.

12

5171405

SHAFT

1шт.

13

5165976

OIL SEAL,60mm ID x 80mm OD x 10mm Thk

60 x 80 x 10

1шт.

14

5167815

SPACER,40.1mm ID x 50mm OD x 54.0mm L

1шт.

Выбрано товаров: 14
