Запчасти Case IH JX1080U (1.80.1[01]) - POWER TAKEOFF - COVER & GUARD (07) - HYDRAULIC SYSTEM

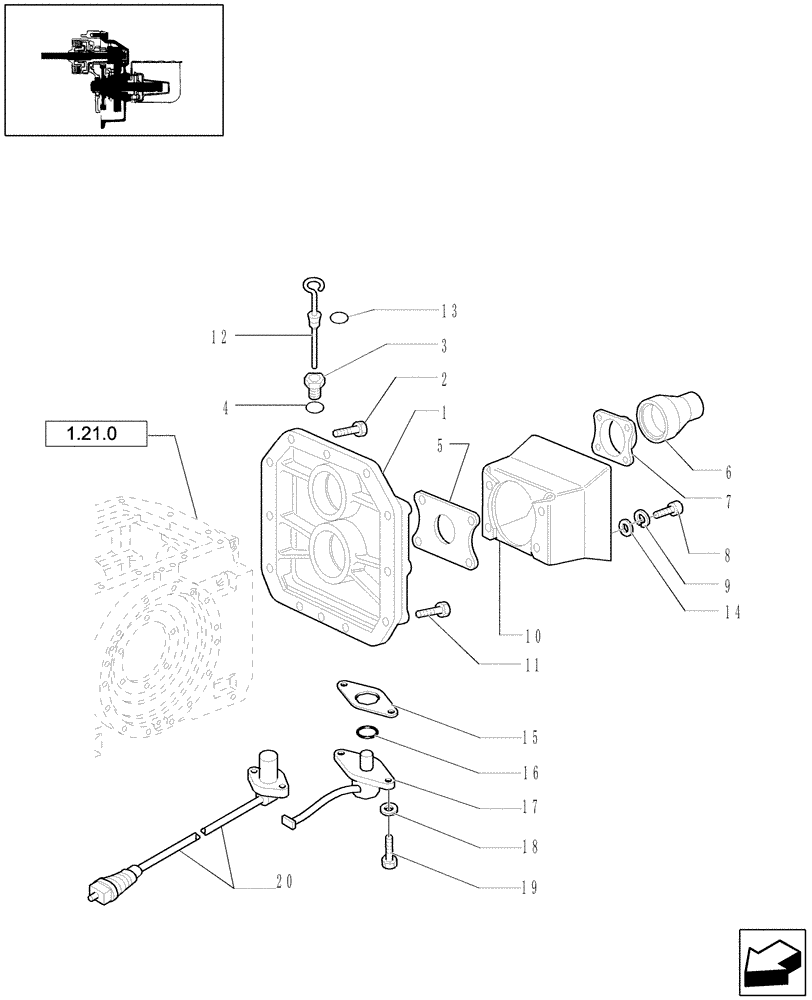

Схема запчастей Case IH JX1080U - (1.80.1[01]) - POWER TAKEOFF - COVER & GUARD (07) - HYDRAULIC SYSTEM
20
16
15
18
13
5
4
1
1
10
8
12
14
6
1
2
9
17
7
3
19

Артикул

Название

Примечание

Количество

1

5164003

COVER

1шт.

2

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

3

5169718

PLUG,M22 x 1.5

1шт.

4

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.

5

5104039

GUARD

1шт.

6

47125899

COVER,109mm L

1шт.

7

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

8

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

9

10569374

LOCK WASHER,M8

4шт.

10

5199413

SHIELD

L = 201 MM

1шт.

11

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

12

5169720

DIPSTICK,207mm L

Fluid Level

1шт.

13

14452881

O-RING,7.65mm ID x 1.78" Width

2шт.

14

10730324

WASHER,8.15mm ID x 17mm OD x 2mm Thk

D=8

4шт.

15

47124333

SPACER

1шт.

16

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

17

5150991

SENSOR

PTO Speed, Pick-up Stem 30mm long, Serial Range: -C5042

1шт.

18

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

2шт.

19

10977724

BOLT,M5 x 14.00mm, Cl 8.8, DAC

2шт.

20

87564776

SENSOR

PTO SPEED, Pick-up Stem 23.5mm long., Start Serial: D5042

1шт.

Выбрано товаров: 20
