(1.42.0/ B) - HYDRAULIC PUMP - PARTS

Запчасти Case IH JX1080U (1.42.0/ B) - HYDRAULIC PUMP - PARTS (04) - FRONT AXLE & STEERING

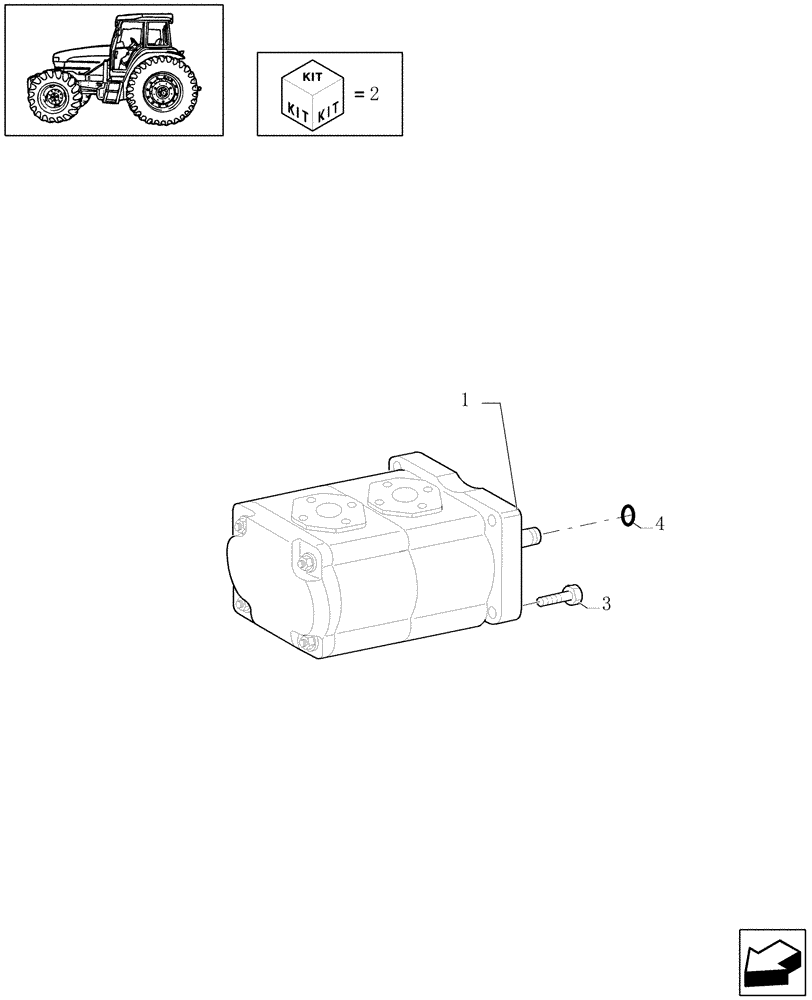

Схема запчастей Case IH JX1080U - (1.42.0/ B) - HYDRAULIC PUMP - PARTS (04) - FRONT AXLE & STEERING
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129338

HYDRAULIC PUMP,22.9 CC

Includes 3

1шт.

1

47129338R

REMAN-HYD PUMP

JX1080U, JX1090U, JX1100U

1шт.

1

47129338C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

47132369

HYD PUMP REPAIR KIT

1шт.

3

14306424

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

4

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

4шт.
