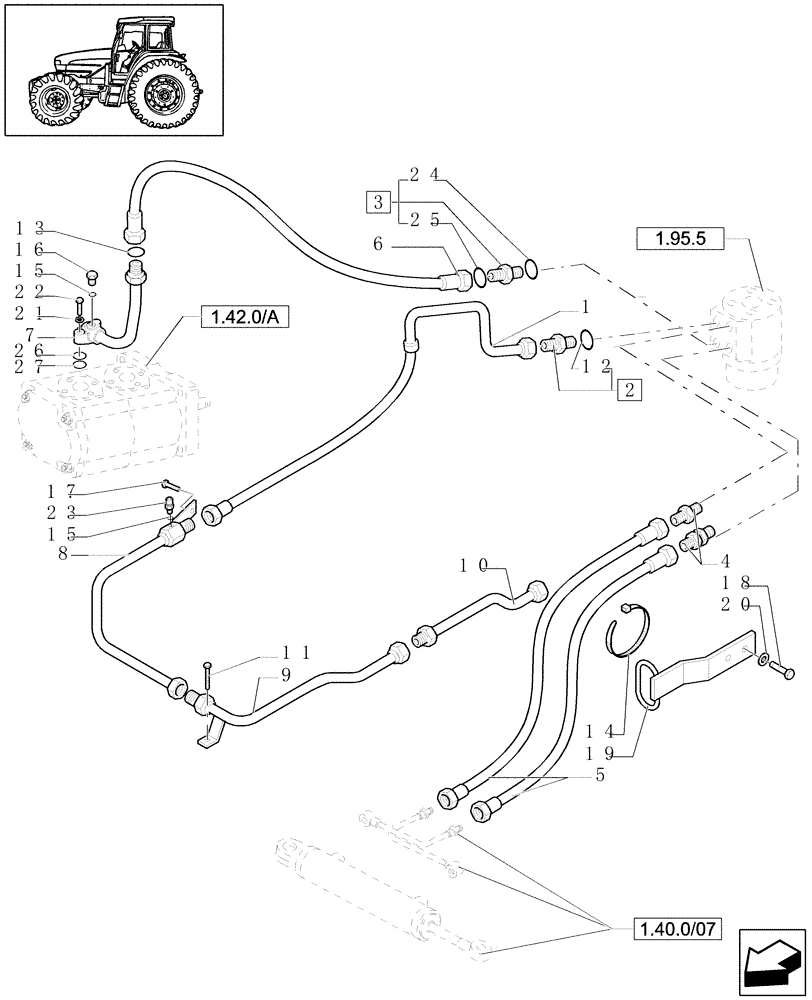

Запчасти Case IH JX1080U (1.42.0[03]) - POWER STEERING HYDRAULIC CONTROL 4WD - PIPES & BRAKETS (04) - FRONT AXLE & STEERING

1

47129777

HYD TUBE

1шт.

2

5197495

HYD CONNECTOR

7/8-14, M22x15

1шт.

3

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

1шт.

4

82002496

HYD CONNECTOR,M18 x 1.5 ORFS x 9/16" - 18 JIC

2шт.

5

5170482

FLEXIBLE HOSE,8mm ID x 1600mm L, SAE 100R1

2шт.

6

47132344

HOSE,13mm ID x 950mm L, SAE 100R2

1шт.

6

44905874

HOSE,16.00 mm ID x 440.00 mm

1шт.

Front Axle, 40Km/H Hydraulic Differential Locking, VAR.406

1шт.

7

47132339

TUBE

1шт.

8

47132011

HYD TUBE

1шт.

9

47129785

HYD TUBE

1шт.

10

47131687

HYD TUBE

1шт.

11

11112124

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

12

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

13

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

15

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

16

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

17

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

18

16043411

BOLT,Hex, M8 x 1.25 x 20mm, Cl 5.8, Full Thd

2шт.

19

47133632

BRACKET

1шт.

20

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

21

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

22

14305524

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

23

82030730

SWITCH ASSY

Oil

1шт.

24

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

90 Duro

1шт.

25

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

26

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

27

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.
