Запчасти Case IH JX1080U (1.40. 9/01[02]) - (VAR.422) VERSION FOR JAPAN - POWER STEERING CYLINDER,PARTS (04) - FRONT AXLE & STEERING

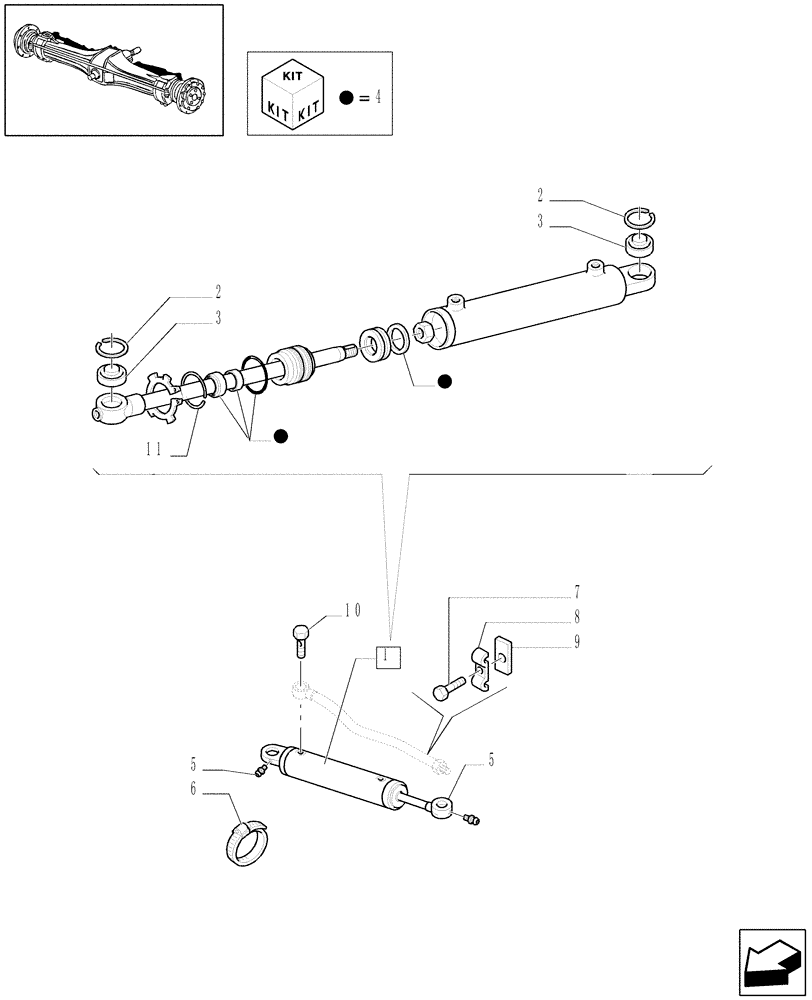

Схема запчастей Case IH JX1080U - (1.40. 9/01[02]) - (VAR.422) VERSION FOR JAPAN - POWER STEERING CYLINDER,PARTS (04) - FRONT AXLE & STEERING
8
1
6
10
11
5
4
2
3
7
3
5
4
2
4
9
4

Артикул

Название

Примечание

Количество

1

5164023

STEERING CYLINDER,Double Acting, 22mm Rod, 208mm Stroke

2шт.

5164023R

REMAN-HYD CYLINDER

JX1090U, JX1080U, JX1100U all (1/04-)

2шт.

5164023C

CORE-HYD CYLINDER

Return Number

1шт.

2

5190903

LOCKING RING

4шт.

3

5190901

BUSHING

4шт.

4

5190916

SEAL KIT

2шт.

5

13406914

LUBE NIPPLE

Straight,1/4"-28

4шт.

6

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

50-70

2шт.

7

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

8

4999554

CLAMP,2 Hoses

2шт.

9

5138294

SUPPORT

2шт.

10

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14x30, JX1090U JX1100U

2шт.

11

5190568

LOCKING RING

1шт.

Выбрано товаров: 13
