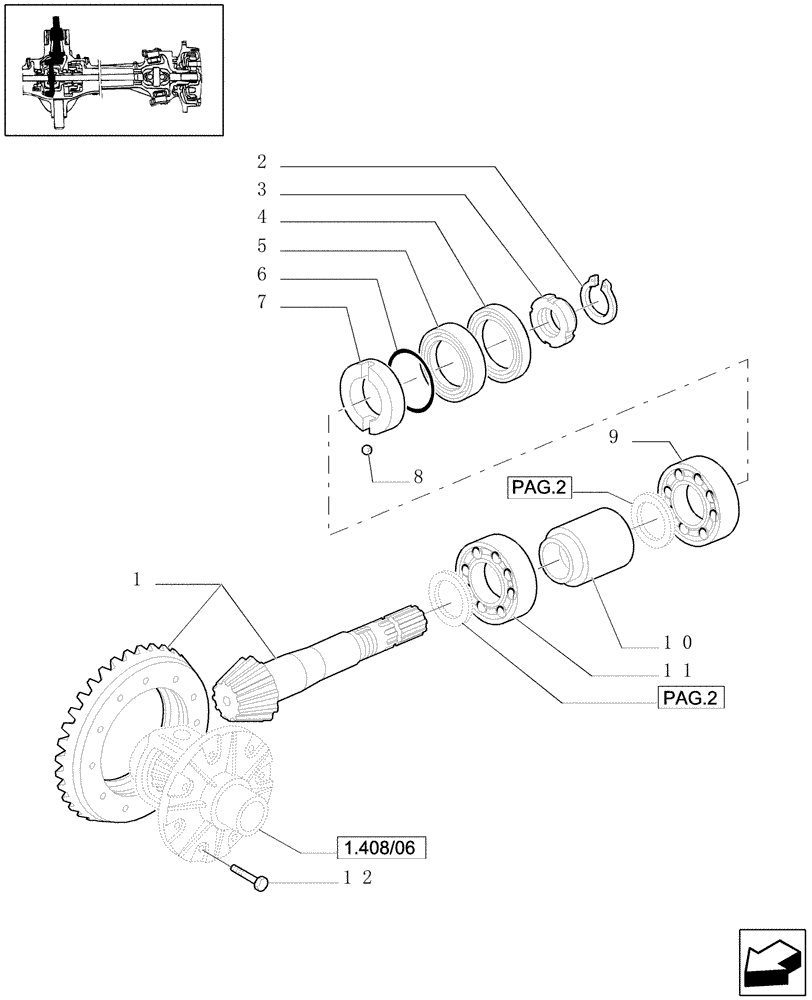

Запчасти Case IH JX1080U (1.40. 8/05[01]) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - BEVEL GEAR PAIR (04) - FRONT AXLE & STEERING

1

5142023

GEAR SET

Ratio = 9/39

1шт.

2

11067776

SNAP RING,M29, Ext

1шт.

3

5143242

RING NUT,M35 x 1.5

M35

1шт.

4

4997451

SEAL PROTECTION,45.4mm ID x 75mm OD x 1mm Thk

1шт.

5

5135294

SEAL,45mm ID x 75mm OD x 12mm Thk

45 x 75 x 10

1шт.

6

14454380

O-RING,31.47mm ID x 1.78" Width

1шт.

7

5142026

RING,35.1mm ID x 45mm OD x 22mm L

1шт.

8

20419320

BALL,6.35mm OD

D=6.35mm

1шт.

9

5133776

TAPERED BEARING,35.00mm x 72.00mm x 28.00mm

35 x 72 x 28

1шт.

10

5169235

SPACER,35.4mm ID x 42mm OD x 63.5mm L

1шт.

11

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

41.275 x 82.550 x 26.543

1шт.

12

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.
