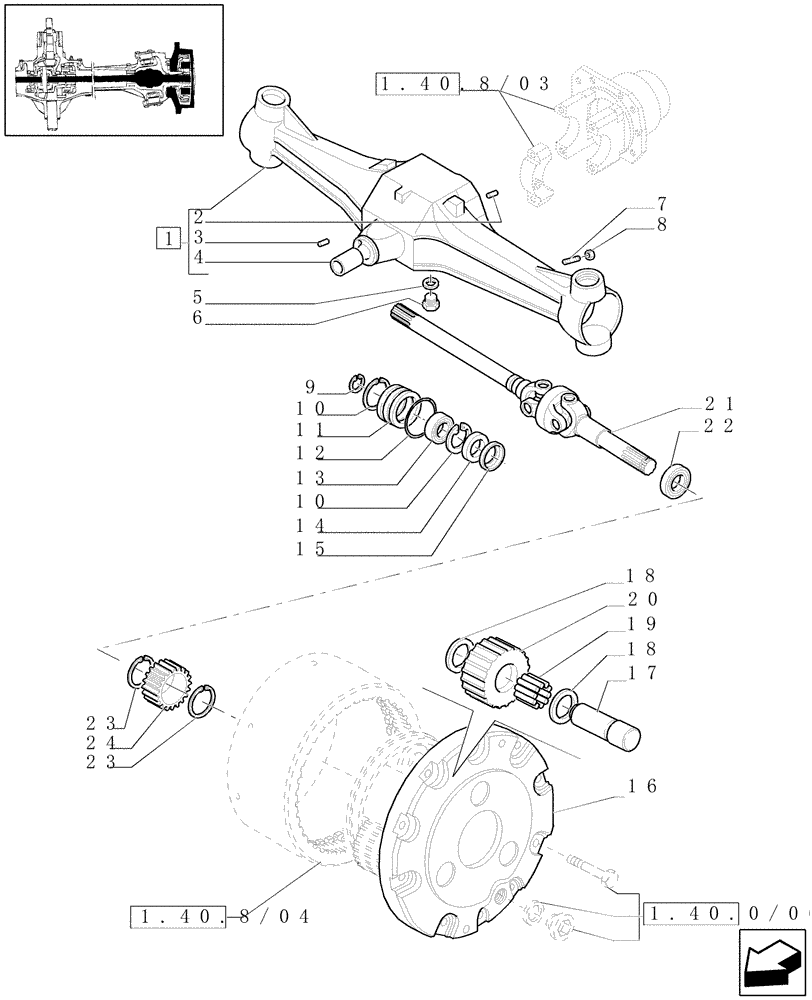

Запчасти Case IH JX1080U (1.40. 8/01[01]) - (VAR.415) FRONT AXLE CL. 2/BRAKE, FRONT MUDGARD HYDR. DIFF. LOCK. HYDR. TRANSM. - FRONT AXLE - C4998 (04) - FRONT AXLE & STEERING

1

5164327

AXLE HOUSING

1шт.

2

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

6

10305171

PLUG,M22 x 1.5 x 21

2шт.

7

87309002

SET SCREW

M12 x 1.25 x 65

2шт.

8

16101524

NUT,M12 x 1.25, Cl 10

2шт.

9

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

10

80370012

SNAP RING

Int, D=62

4шт.

11

4996755

BUSHING

2шт.

12

4966231

O-RING,2.62mm Thk x 80mm ID, 70 Duro

80 x 2.62

2шт.

13

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

35 x 62 x 14

2шт.

14

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

40 x 62 x 10

2шт.

15

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.

16

5181051

SUPPORT

2шт.

17

5181053

PIN,29.98mm OD x 66.5mm L

6шт.

18

4997510

THRUST WASHER,25.7mm ID x 45mm OD x 0.8mm Thk

25 x 45 x 0.8

12шт.

19

5101693

ROLLER BEARING,25.6 mm ID x 35.6 mm OD x 29.8 mm

6шт.

20

5108747

PLANETARY GEAR

6шт.

21

5177918

AXLE-SHAFT, ARTICULA

LH

1шт.

21

5178142

AXLE-SHAFT, ARTICULA

RH

1шт.

22

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

62 x 42 x 21.5

2шт.

23

5140018

SNAP RING,M30, Ext

D=30

4шт.

24

5137107

SUN GEAR

2шт.
