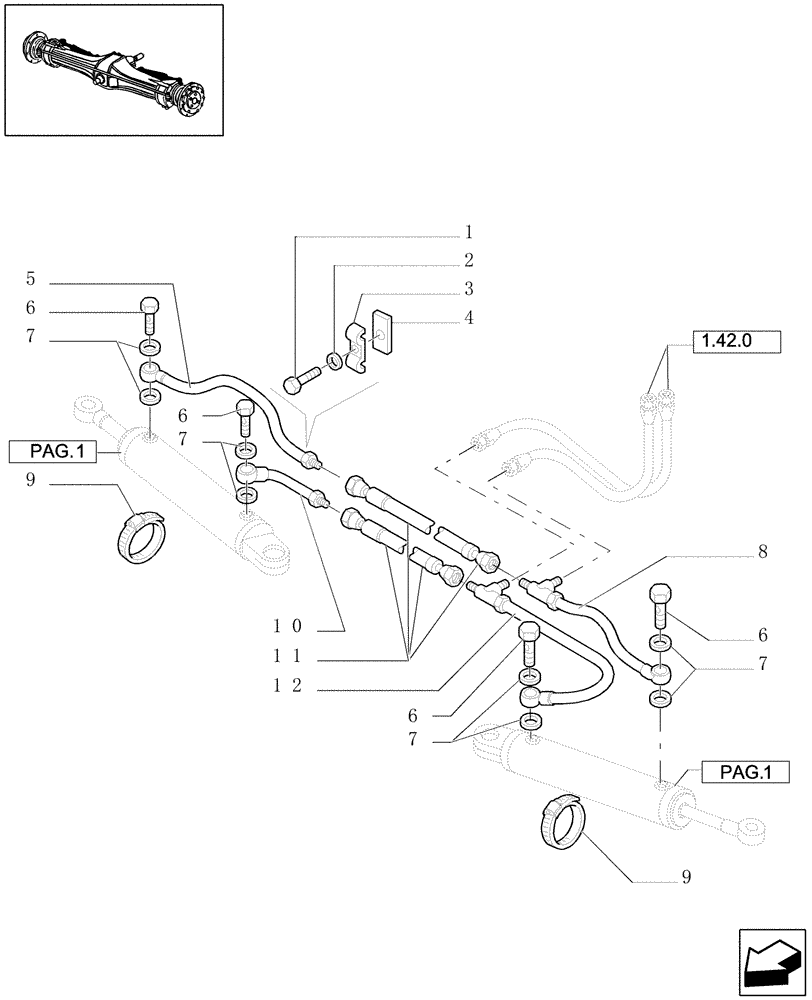

Запчасти Case IH JX1080U (1.40. 3/08[02]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCK. 30-40 KM/H HYDR. REAR DRIVE - PIPES (04) - FRONT AXLE & STEERING

1

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

2

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

3

4999554

CLAMP,2 Hoses

2шт.

4

5138294

SUPPORT

2шт.

5

5174320

HYD TUBE

1шт.

6

4864083

BANJO BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30

4шт.

7

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86x22.23x2

8шт.

8

5174322

HYD TUBE

1шт.

9

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

M50-70

2шт.

10

5174317

HYD TUBE

1шт.

11

5169237

FLEXIBLE HOSE,8mm ID x 380mm L, SAE 100R1

2шт.

12

5174315

HYD TUBE

1шт.
