Запчасти Case IH JX1080U (1.40. 3/07[02A]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCKING 30-40 KM/H HYDR. REAR DRIVE - REDUCTION GEARS - D4998 (04) - FRONT AXLE & STEERING

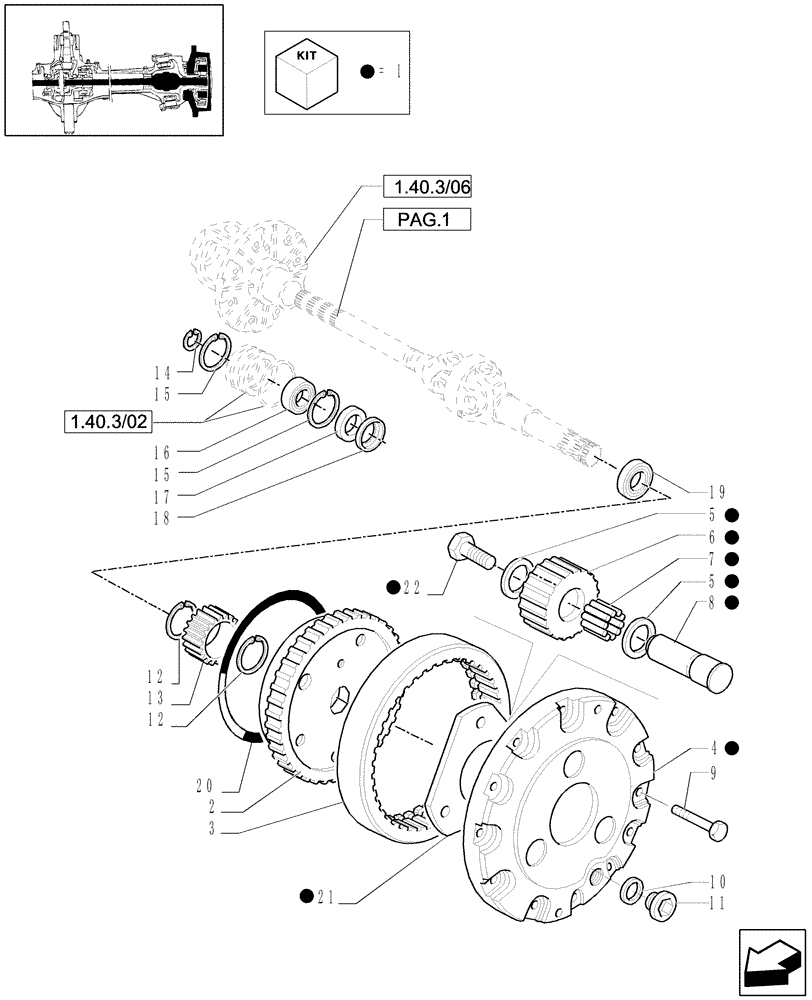

Схема запчастей Case IH JX1080U - (1.40. 3/07[02A]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCKING 30-40 KM/H HYDR. REAR DRIVE - REDUCTION GEARS - D4998 (04) - FRONT AXLE & STEERING
8
3
6
21
12
15
10
7
1
9
2
1
12
13
20
14
5
18
1
17
16
11
1
1
19
22
1
1
5
15
4
1
1

Артикул

Название

Примечание

Количество

1

87303291

CARRIER

ASSY

2шт.

2

5142047

PLANET CARRIER

2шт.

3

5108749

RING GEAR

2шт.

4

87312520

SUPPORT

2шт.

5

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

6

87303252

PLANETARY GEAR

6шт.

7

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

8

87304540

PIN,30.3mm OD x 68mm L

68mm l.

6шт.

9

14233634

LOCK BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

24шт.

10

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

11

10305171

PLUG,M22 x 1.5 x 21

2шт.

12

5140018

SNAP RING,M30, Ext

4шт.

13

5137107

SUN GEAR

2шт.

14

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

15

80370012

SNAP RING

D=62

4шт.

16

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

35 x 62 x 14

2шт.

17

87350856

SEAL,38.4mm ID x 62mm OD x 10mm Thk

40x60x10-12

2шт.

18

4996762

RETAINER,40.2mm ID x 62mm OD x 6mm L

2шт.

19

5184118

SEAL,42mm ID x 62mm OD x 21.5mm Thk

62 x 42 x 21.5

2шт.

20

4997571

CIRCLIP

2шт.

21

47137794

RING

2шт.

22

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

Выбрано товаров: 22
