(1.40. 3/07[01]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCKING 30-40 KM/H HYDR. REAR DRIVE - HALF SHAFTS

Запчасти Case IH JX1080U (1.40. 3/07[01]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCKING 30-40 KM/H HYDR. REAR DRIVE - HALF SHAFTS (04) - FRONT AXLE & STEERING

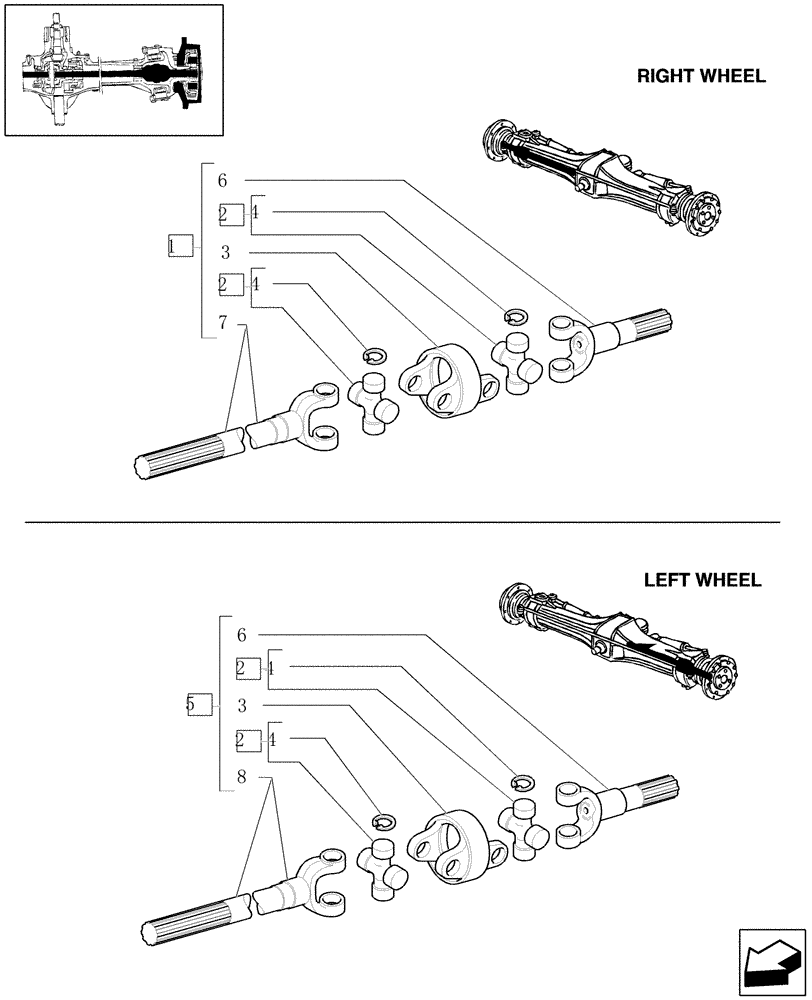

Схема запчастей Case IH JX1080U - (1.40. 3/07[01]) - (VAR.308-308/1) FRONT AXLE CL. 2 HYDR. LOCKING 30-40 KM/H HYDR. REAR DRIVE - HALF SHAFTS (04) - FRONT AXLE & STEERING
5
3
3
2
2
6
1
6
4
4
4
7
4
2
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5166550

ARTICULATED SHAFT

RH

1шт.

2

5191547

U-JOINT SPIDER

4шт.

3

5191550

YOKE

Universal Joint

2шт.

4

5191548

CIRCLIP

16шт.

5

5166562

ARTICULATED SHAFT

LH

1шт.

6

5191549

SHAFT

199.5 mm

2шт.

7

5191560

SHAFT

1шт.

8

5191559

SHAFT

612.5 mm

1шт.
